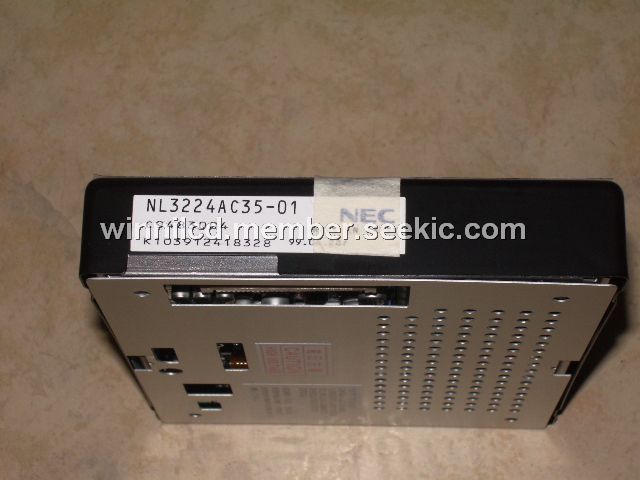

Product Summary
The NL3224AC35-01 is a TFT (thin film transistor) active matrix color liquid crystal displays (LCD) comprising amorphous silicon TFT attached to signal electrode, a driving circuit and a backlight. Both the products have a built-in backlight. Its 14 cm diagonal display area contain 320’240 pixels and can display full-color simultaneously.
Parametrics
Absolute maximum ratings: (1)Supply voltage: VDC: –0.5 to 20.0 V at Ta = 25℃, VDCB: –0.5 to 20.0 V; (2)Analog RGB input signal: –2.5 to 2.5 V at Ta = 25℃, VDC = 9.5 V; (3)Logic input voltage: –0.5 to 5.5 V; (4)Storage temp.: –40 to 95 ℃; (5)Operating temp.: –30 to 85 ℃; (6)Relative humidity (RH): ≦ 95 % at Ta ≦ 40℃, ≦ 85 % at 40 < Ta ≦ 50℃; (7)Absolute humidity: Absolute humidity shall not exceed Ta = 50°C, RH = 85% g/m3 at Ta > 50℃.
Features
Features: (1)High luminance; (2)NTSC/PAL mode; (3)Reversible horizontal and vertical scanning; (4)234/240 line display; (5)Wide temparature range; (6)Analog RGB interface; (7)Incorporated edge type backlight.

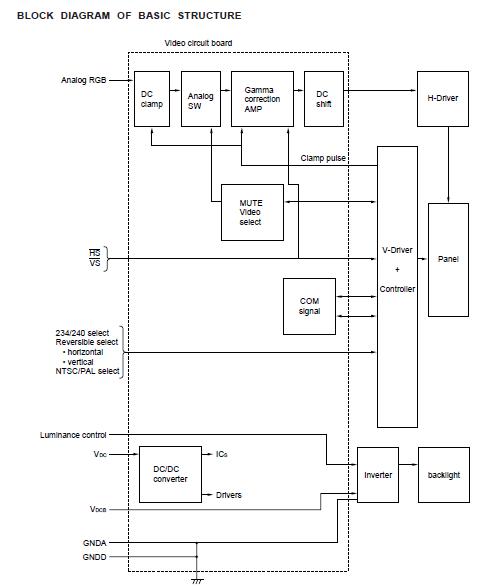

Diagrams
