Product Summary

The LB121S02 (A2) is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LB121S02 (A2) is a transmissive type display operating in the normally white mode. This TFT-LCD LB121S02 (A2) has 12.1 inches diagonally measured active display area with SVGA resolution(600 vertical by 800 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors.

Parametrics

LB121S02 (A2) absolute maximum ratings: (1)Operating Ambient Humidity, HOP: 10 to 90 %RH; (2)Storage Humidity, HST: 10 to 90 %RH; (3)Storage Temperature, TST: -20 to 60℃; (4)Operating Temperature, TOP: 0 to 50℃; (5)Power Input Voltage, VCC: -0.3 to 4.0Vdc.

Features

LB121S02 (A2) features: (1)active screen size: 12.1 inches (30.75cm) diagonal; (2)outline dimension: 280(H)×218(V)×11(D, typ) mm; (3)pixel pithc: 0.3075mm×0.3075mm; (4)pixel format: 800 horiz, by 600 vert, pixels RGB strip arrangement; (5)color depth: 6-bit, 262144 colors; (6)luminarance, white: 350 cd/m2 (typ); (7)power consumption: 7.8 Watt (typ); (8)weight: 675g typ; (9)display operating mode: transmissive mode, normally white; (10)surface treatment: hard coating (3H) anti-glare treatment of the front polarizer.

Diagrams

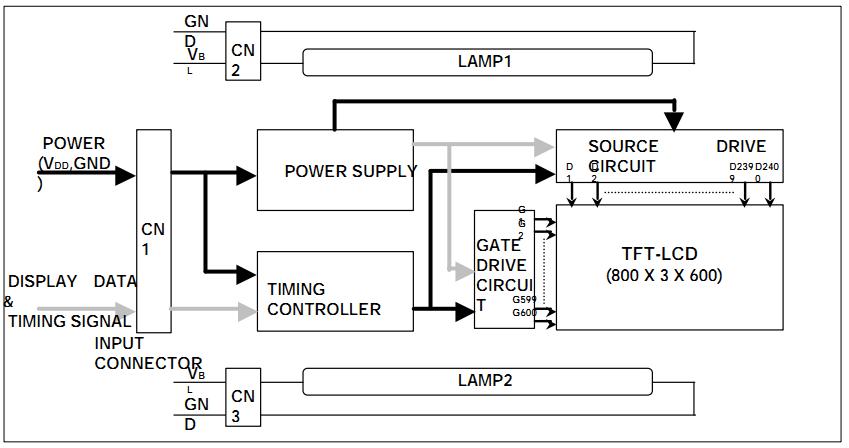

LB121S02 (A2) block diagram
