Product Summary
The NL6448BC33-59 module is composed of the amorphous silicon thin film transistor liquid crystal display(a-Si TFT LCD) panel structure with driver LSIs driving the TFT array and a backlight.
Parametrics
NL6448BC33-59 specifications: (1)Display area: 211.2(W) ×158.4(H)mm (typ.); (2)Diagonal size of display: 26 cm (10.4 inches); (3)Drive system: a-Si TFT active matrix; (4)Display color: 262,144 colors; (5)Pixel: 640 (H)×480(V) pixels; (6)Pixel arrangement: RGB vertical stripe; (7)Dot pitch: 0.11(W)×0.33(H) mm; (8)Pixel pitch: 0.33(W)×0.33(H) mm; (9)Module size: 243.0(W)×185.1(H)×10.5(D) mm(typ.).
Features
NL6448BC33-59 features: (1)High luminance; (2)High contrast; (3)6-bit digital RGB signals; (4)DE function; (5)Reversible-scan direction; (6)Edge light type( Inverter less); (7)Replaceable lamp for backlight; (8)Acquisition product for UL60950 3rd edition/CSA C22.2 NO. 60950(File number: E170632).

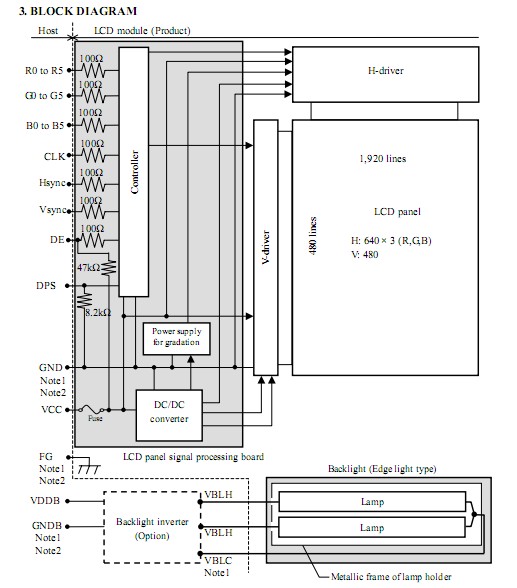

Diagrams
 |
