Product Summary

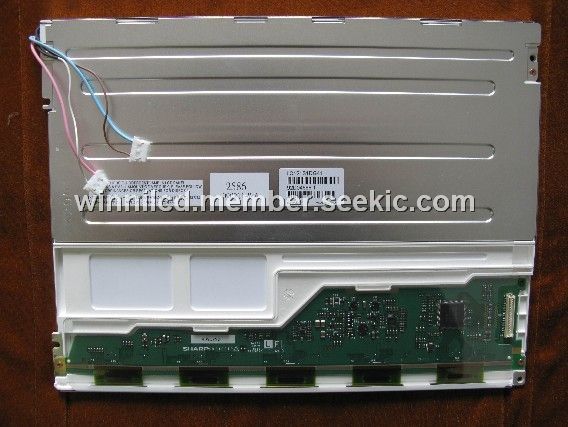

This LQ121S1DG41module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 800×3×600 dots panel with 262,144 colors by supplying 18 bit data signal (6bit/color), four timing signals, +3.3V/5.0V DC supply voltage for TFT-LCD panel driving and supply voltage for backlight. The LQ121S1DG41 TFT-LCD panel used for this module is a low-reflection and higher-color-saturation type.
Parametrics
Absolute maximum ratings: (1)Input voltage, VI: -0.3 to Vcc+0.3 V at Ta=25 ℃ ; (2)supply voltage, Vcc: 0 to +6.0 V at Ta=25 ℃; (3)Storage temperature, Tstg: - -30 to +70 ℃; (4)Operating temperature (Ambient), Topa: -10 to +65 ℃.
Features
Features: (1)Display Type: LCD-Color ; (2)Viewing Area: 246.00mm L x 184.50mm W ; (3)Dot Pixels: 800 x 600 (SVGA) ; (4)Lead Free Status: Contains Lead ; (5)RoHS Status: RoHS Non-Compliant .

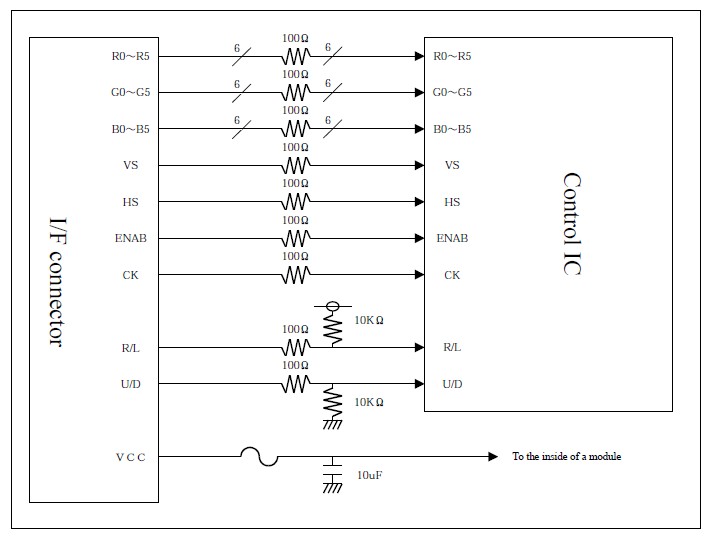

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ121S1DG41 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" TFT (2 x CCFT) SVGA (370 Nits) |
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
LQ121K1LG11 |
Sharp Microelectronics |
TFT Displays & Accessories |
Data Sheet |
Negotiable |
|
||||||||
|
LQ121K1LG52 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" WXGA 1280x800 LED Backlight |
Data Sheet |
|
|
||||||||
|
LQ121S1DC71 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" TFT SVGA 800x600 800nit |
Data Sheet |
|
|
||||||||
|
LQ121S1DG11 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
LQ121S1DG21 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
LQ121S1DG31 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
