Product Summary

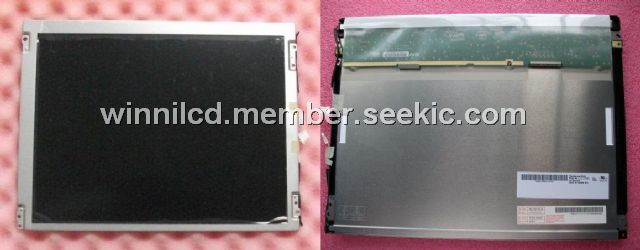

The G121SN01 V.0 is a 12.1 Inch Color TFT-LCD.

Parametrics

G121SN01 V.0 absolute maximum ratings: (1)Operating Temperature TOP: -30 to +85 [℃]; (2)Operation Humidity HOP: 5 to 95 [%RH]; (3)Storage Temperature TST -30 to +85 [℃]; (4)Storage Humidity HST: 5 to 95 [%RH].

Features

G121SN01 V.0 features: (1)Screen Diagonal [inch]: 12.1; (2)Active Area [mm]: 246 (H) x 184.5 (V); (3)Pixels H x V: 800 x 3(RGB) x 600; (4)Pixel Pitch [mm]: 0.3075 x 0.3075; (5)Pixel Arrangement: R.G.B. Vertical Stripe; (6)Display Mode: TN, Normally White; (7)Nominal Input Voltage VDD [Volt]: 3.3 (typ.); (8)Typical Power Consumption [Watt]: 6.7 W All black pattern; (9)Weight [Grams]: 580 (Max.); (10)Physical Size [mm]: 279.0(H) x 209.0(V) x 9.0(D) (Typ.); (11)Electrical Interface: 1 channel LVDS; (12)Surface Treatment: Anti-glare, Hardness 3H; (13)Support Color: 16.2M / 262K colors; (14)RoHS Compliance: RoHS Compliance.

Diagrams

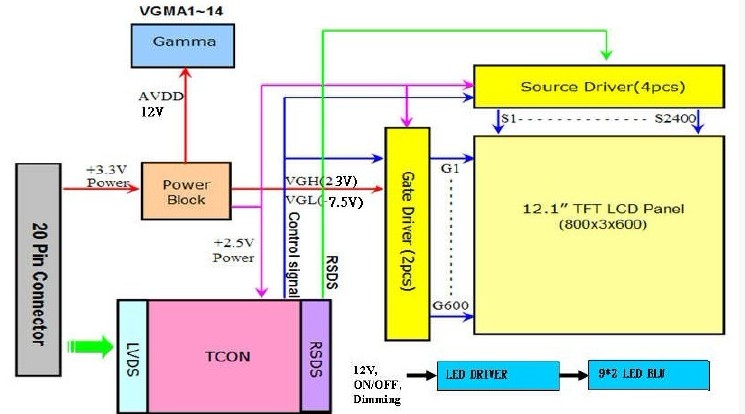

G121SN01 V.0 block diagram
