Product Summary

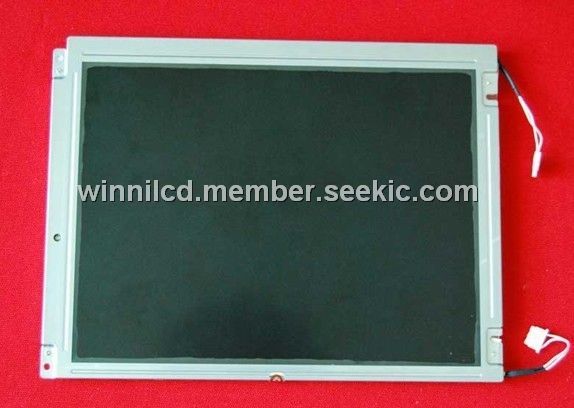

The PD104VT2 is a 10.4 inch a-Si TFT-LCD Panel. It applies to OA product, car TV(must use Analog to Digital drive board), which require high quality flat panel display.If you must use in high reliability environment can’t over reliability test condition.
Parametrics
PD104VT2 absolute maximum ratings: (1)Supply Voltage Vcc: -0.3 to +4.0 V; (2)Input Signal Voltage VIN: -0.3 to Vcc+0.3 V; (3)Backlight Driving Voltage VL: - 2000 V; (4)Backlight Driving Frequency FL: 0 to 100 KHz; (5)Storage Temperature TST: -10 to +70℃; (6)Operating Temperature TOP: -10 to +60℃.
Features
PD104VT2 features: (1)Support the DENB mode; (2)Image Reversion : Up/Down and Left/Right; (3)Amorphous silicon TFT LCD panel with back-light unit; (4)Pixel in stripe configuration; (5)Slim and compact, designed for O/A application; (6)Display Colors：262,144 colors; (7)+3.3V DC supply voltage for TFT LCD panel driving; (8)Backlight driving DC/AC inverter not included in this module; (9)TTL transmission interface.

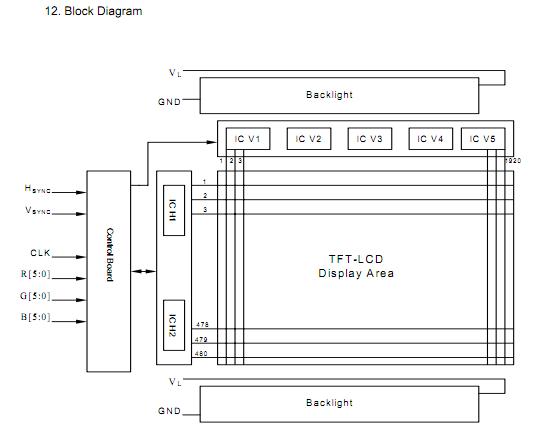

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PD104VT2 |
Other |
|
Data Sheet |
Negotiable |
|
||||
