Product Summary

The LTM10C209A is a 26cm COLOUR TFT-LCD MODULE.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: (VDD): -0.3 V min and 7.0 V max, (VFL): 0 min and 2.0 kV(rms) max; (2)FL Driving Frequency (fFL): 0 min and 100 kHz max; (3)Input Signal Voltage (VIN): -0.3 V min and VDD+0.3 V max; (4)Operating Temperature: 0 min and 50 °C max; (5)Storage Temperature: -20 to 60 °C; (6)Storage Humidity (Max. wet bulb temperature = 39°C): 10 %(RH) min and 90 %(RH) max.

Features

Features: (1)10.4” VGA color display with High Luminance; (2)Built in Long Life Lamps(30,000 h); (3)Replaceable structure of lamp units; (4)Full mechanical compatible with LTM10C273 (10.4” SVGA).

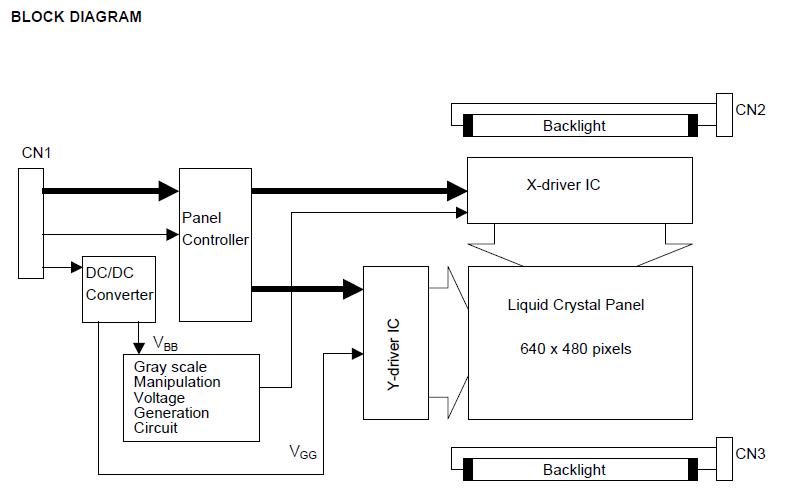

Diagrams
