Product Summary
The LTA150XH-L06 is a color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a back light unit. The resolution of a 15.0“ is 1024 x 768 and this model can display up to 16.2 millions colors.
Parametrics
Absolute maximum ratings: (1)Power Supply Voltage, Vcc: Vss-0.3 to 3.6 V; (2)storage temperature, TSTG: -25 to 60℃; (3)Center of Glass surface temperature(Operation), TOPR: 0 to 50℃; (4)Shock ( non - operating ), Snop: 50 G max; (5)Vibration ( non - operating ), Vnop: 1.5 G max.
Features
Features: (1)High contrast ratio, High aperture structure, High-speed response time; (2)TN(Twisted Nematic) mode; (3)XGA(1024x768 pixels) resolution; (4)Low power consumption; (5)2 dual CCFTs (Cold Cathode Fluorescent Tube); (6)DE(Data Enable) Mode; (7)LVDS (Low Voltage Differential Signaling) Interface with 1 pixel / clock.

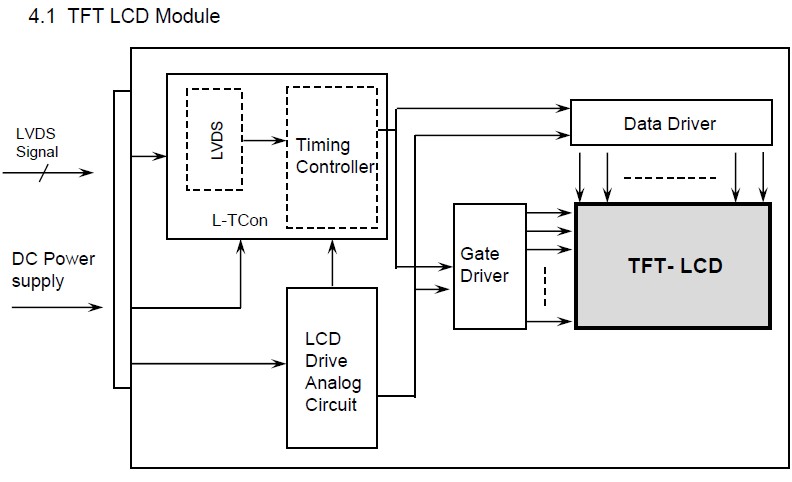

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTA150XH-L06 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LTA104S1-L01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
LTA121C32SF |
|
LCD 12.1INCH 800X600 SVGA LVDS |
Data Sheet |
Negotiable |
|
||||
|
LTA149B781F |
|
LCD 14.9" 1280X390 LVDS |
Data Sheet |
Negotiable |
|
||||
|
LTA150B851F |
|
LCD 15" 1024X768 XGA LVDS |
Data Sheet |
Negotiable |
|
||||
|
LTA150XH-L06 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LTA170D200F |
Other |
|
Data Sheet |
Negotiable |
|
||||
