Product Summary
The NL8060BC21-02 is a TFT color LCD module. It is composed of the amorphous silicon thin film transistor liquid crystal display panel structure with driver LSIs for driving the TFT array and a backlight. The applications of the NL8060BC21-02 include industrial use.
Parametrics
NL8060BC21-02 absolute maximum ratings: (1)Power supply voltage, VCC: -0.3 to +4.0V; Lamp voltage, VBLH: 1700Vrms; (2)Input voltage for signals, VD, VF: -0.3 to VCC+0.3V; (3)Storage temperature, Tst: -20 to +80℃; (4)Operating temperature, Front surface, TopF: -10 to +70℃; Rear suface, TopR: -10 to +70℃.
Features
NL8060BC21-02 features: (1)Wide viewing angle; (2)High contrast; (3)LVDS interface; (4)Reversible-scan direction; (5)Edge light type; (6)Replaceable lamp for backlight; (7)Selectable 8bit for 6bit digital signals for data of RGB; (8)Acquisition product for UL60950.

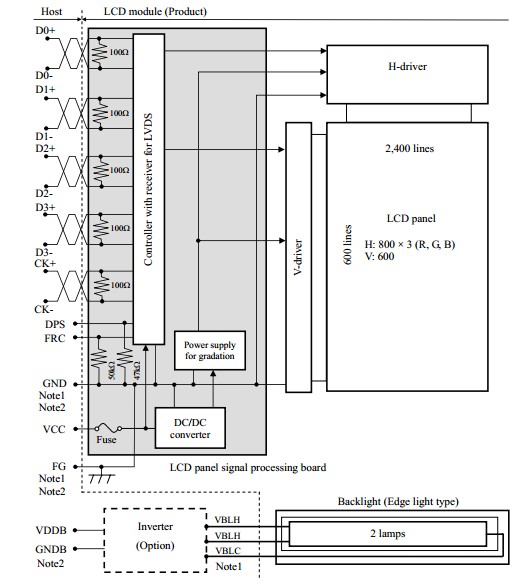

Diagrams
 |
