Product Summary

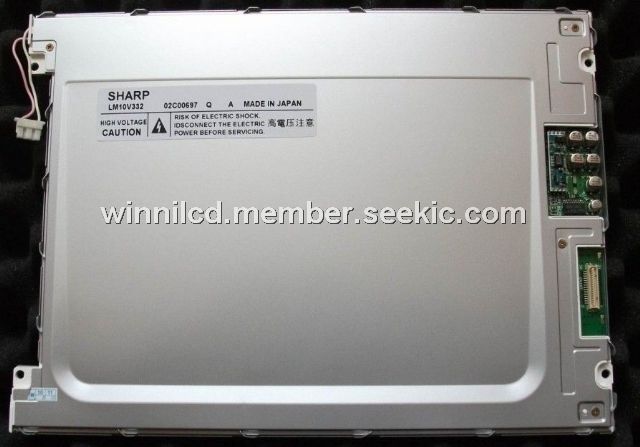

The LM10V332 is a Color STN-LCD Module, which is widely used in FA, POS, Measuring instruments and other places.
Parametrics
Specifications: (1)Display size: 26 [10.4] cm; (2)Backlight type: 1CCFT(E); (3)Dot format (H x V): 640 x RGB x 480 dot ; (4)Duty Ratio: 1/240; (5)Dot pitch (H x V): 0.11 x 0.33 mm ; (6)Logic voltage: 5.0 Vcon V; (7)Active area (H x V): 211.2 x 158.4 mm ; (8)Power consumption: 3 310 mW; (9)Outline dimensions (W x H x D): 264.0 x 193.6 x 8.5 mm; (10)Panel mode: Transmissive; (11)Weight: 450 g; (12)Contrast ratio: 50 : 1; (13)Response Time: 300 ms ; (14)Brightness: 160 cd/m2; (15)Operating temperature: 0 to +40 ℃; (16)Storage temperature: -25 to +60 ℃.
Features
Features: (1)26 cm [10.4"] VGA format; (2)Cost effective Color STN LCD; (3)High contrast (50 : 1).

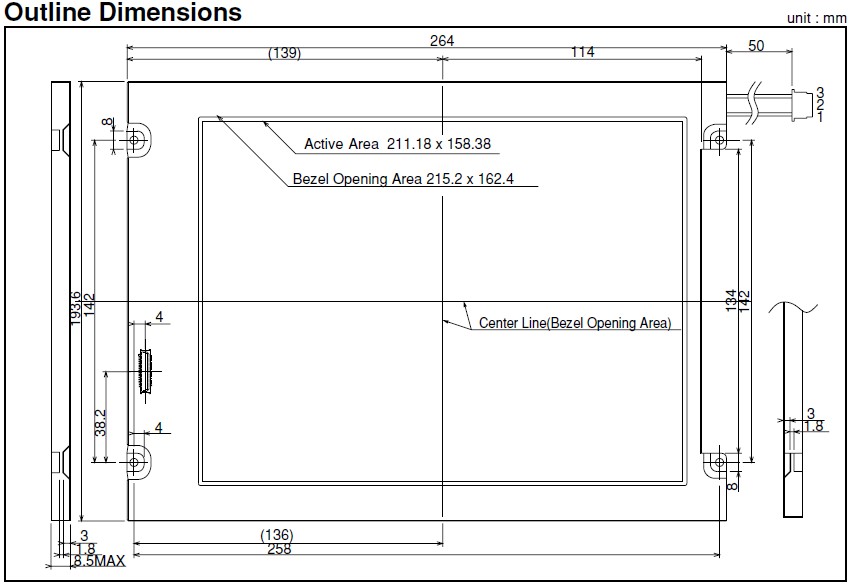

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM10V332 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
