Product Summary

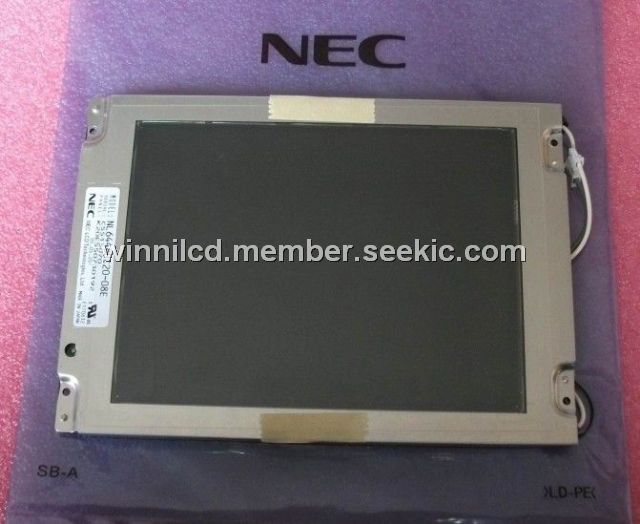

The NL6448BC20-08E module is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight unit. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
Parametrics
Absolute maximum ratings: (1)Power supply voltage: LCD panel signal board, VCC: -0.3 to +6.5 V; Lamp: High voltage side (Hot), VBLH: 2,000 Vrms; Low voltage side (Cold), VBLC: 42.4 Vrms; (2)Input voltage for signals: Display signals, VD: -0.3 to VCC+0.3 V; Function signals, VF: -0.3 to VCC+0.3 V; (3)Storage temperature, Tst: -25 to +70 ℃; (4)Operating temperature: Front surface, TopF: 0 to +60 ℃; Rear surface, TopR: 0 to +60 ℃; (5)Relative humidity, RH: ≤ 95 % at Ta ≤ 40℃; ≤ 85 % at 40 < Ta ≤ 50℃; ≤ 70 % at 50 < Ta ≤ 55℃; ≤ 60 % at 55 < Ta ≤ 60℃; (6)Absolute humidity, AH: ≤ 78 g/m3 at Ta > 60℃.
Features
Features: (1)High luminance; (2)Wide viewing angle; (3)Low reflection; (4)6-bit digital RGB signals; (5)Reversible-scan direction; (6)Edge light type; (7)Replaceable lamp for backlight unit (Inverter less); (8)Acquisition product for UL1950 3rd edition/CSA C22.2 No.950-95(File number:E170632); (9)Comparison table of NL6448BC20-08E and NL6448BC20-08.
