Product Summary
The LQ121S1DG61 is a color TFT-LCD module(FA/POS/Measuring instruments).
Parametrics
LQ121S1DG61 absolute maximum ratings: (1)+3.3V/5.0V supply voltage: o to +6.0V; (2)Input voltage: -0.3 to Vcc+0.3V; (3)Lamp input voltage: 1800 Vramp; (4)Storage temperature: -30 to +80 ℃; (5)Operating temperature: -30 to +80 ℃.
Features
LQ121S1DG61 specifications: (1)Display size: 31 diagonal cm; (2)Active area: 246(H)×184.5(V); (3)Pixel format: 800H ×600(V) pixel; (4)Number of colors: 262,144 colors; (5)Pixel pitch: 0.3075 (H)×0.3075(V); (6)Pixel configuration: R,G,B vertical stripe; (7)Display mode: normally white; (8)Mass: max. 800; (9)Surface treatment: Anti-glare and hard-coating 3H

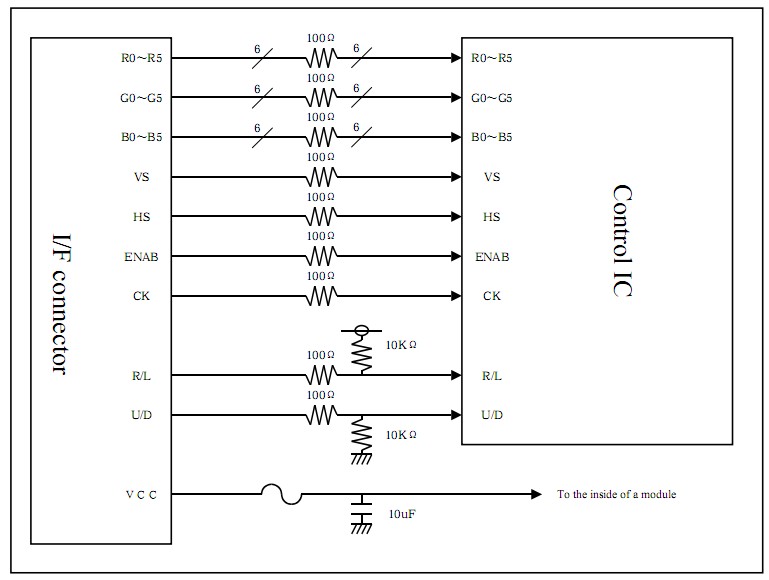

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ121S1DG61 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" SVGA STRONG 2 LVDS |
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
LQ121K1LG11 |
Sharp Microelectronics |
TFT Displays & Accessories |
Data Sheet |
Negotiable |
|
||||||||
|
LQ121K1LG52 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" WXGA 1280x800 LED Backlight |
Data Sheet |
|
|
||||||||
|
LQ121S1DC71 |
Sharp Microelectronics |
TFT Displays & Accessories 12.1" TFT SVGA 800x600 800nit |
Data Sheet |
|
|
||||||||
|
LQ121S1DG11 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
LQ121S1DG21 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
LQ121S1DG31 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
