Product Summary

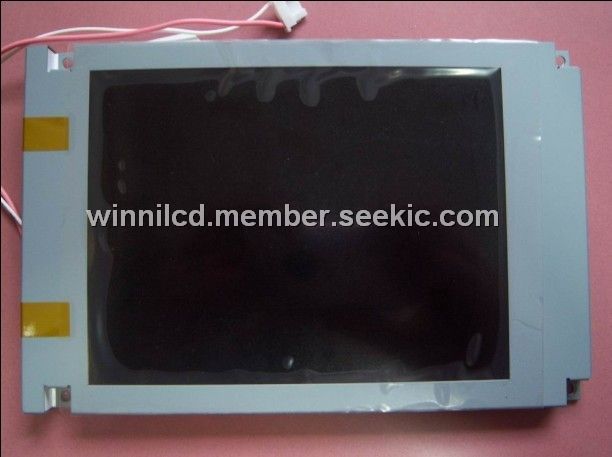

The SX14Q004 is a LCD MODULE.
Parametrics
Absolute maximum ratings: (1)power supply for logic: 0V min and 6.0V max; (2)contrast adjustment voltage: 0V min and VDD max; (3)input voltage: -0.3V min and VDD+0.3V max; (4)input current: 0A min and 1A max.
Features
Features: (1)part name: SX14Q004; (2)module size: 167.0(W)mm×109.0(H)mm×8.9(D)mm; (3)resolution: 320×3(W)×240(H)dots; (4)duty ratio: 1/240; (5)LCD type: color STN transmissive type; (6)viewing direction: 6 O’clock; (7)weight: 190g typ; (8)power supply voltage: 3.3V only.

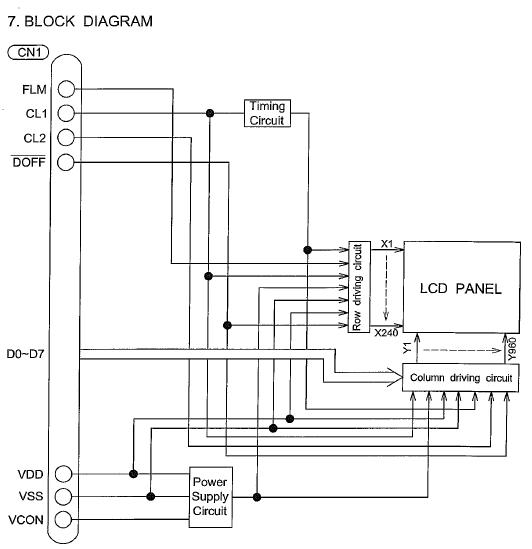

Diagrams
 |
