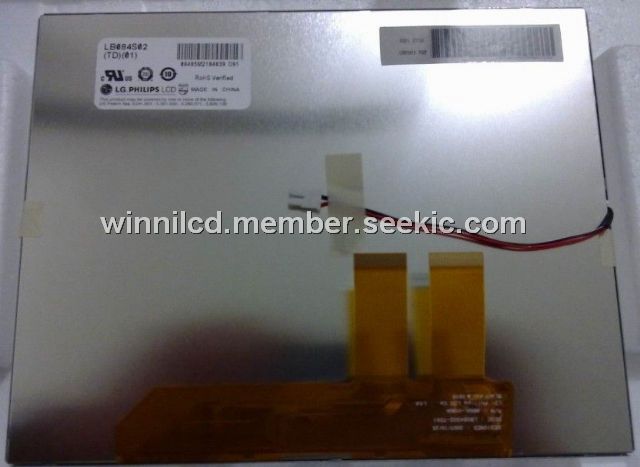

Product Summary

The LB084S02(TD)(01) is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode(LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode. This TFT-LCD has 8.4 inches diagonally measured active display area with SVGA resolution(800 horizontal by 600 vertical pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a palette of more than 262,144 colors. The LB084S02(TD)(01) has been designed to apply the interface method that enables low power, high speed, low EMI.

Parametrics

Absolute maximum ratings: (1)Logic Voltage, VCC: -0.3 to 5.0 V at Ta=25℃; (2)Source Driver Voltage, AVDD: -0.5 to 15.0 V at Ta=25℃; (3)Gate Driver Voltage: VGH-VGL: -0.3 to 40 V at Ta=25℃; VGL: -20 to 0.3 V at Ta=25℃; VGH: -0.3 to 42 V at Ta=25℃; (4)Analog Input Signals, VI2: -0.5 to 15.0 V at Ta=25℃; (5)Digital Input Signals, VI1: -0.3 to 5.0 V at Ta=25℃; (6)Operating Temperature( Ambient Temperature ), Top: -10 to 60℃; (7)Storage Temperature, Tst: -20 to 70℃.

Features

Features: (1)Active Screen Size: 8.4 inches diagonal; (2)Outline Dimension: 189.75x149.4x6.3mm; (3)Pixel Pitch: 0.071mm to 0.213mm; (4)Pixel Format: 800 horiz. by 600 vert. Pixels RGB strip arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Luminance, White: 250 cd/m2 (Typ.); (7)Power Consumption: LCD(TBD); (8)Weight: 300g(Typ.); (9)Display Operating Mode: Transmitting type, normally white; (10)Surface Treatment: Anti-glare treatment of the front polarizer.

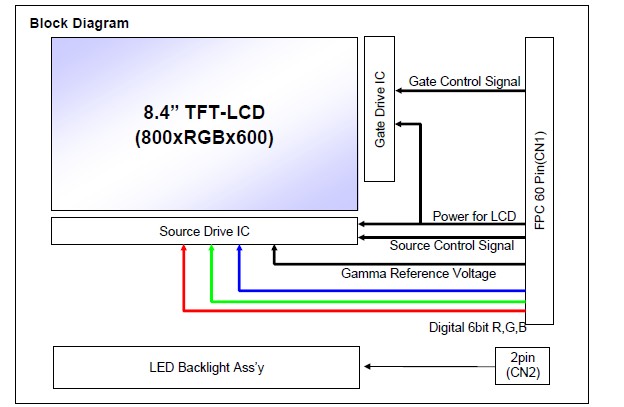

Diagrams
