Product Summary

The NL6448BC33-31 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. The NL6448BC33-31 has a built in backlight. Backlight includes long-life-lamps and the lamps are replaceable. The applications of the NL6448BC33-31 are Display terminals for control system, Monitors for process controller, Industrial PCs.

Parametrics

NL6448BC33-31 absolute maximum ratings: (1)Supply voltage:–0.3 to 6.5 V; (2)Input voltage:–0.3 to VCC +0.3 V; (3)Lamp voltage:2000 Vrms; (4)Storage temp.:–20 to 60℃; (5)Operating temp.:0 to 50℃.

Features

NL6448BC33-31 features: (1)Wide viewing angle (with Retardation Film); (2)Smooth polarizer surface (No antiglare treatment); (3)High luminance (350 cd/m2, typ.: saturated value, at room temp.); (4)Low reflection; (5)6-bit digital RGB signals; (6)Data enable function; (7)Backlight with two long-life-time lamps (one lamp holder, inverter-less).

Diagrams

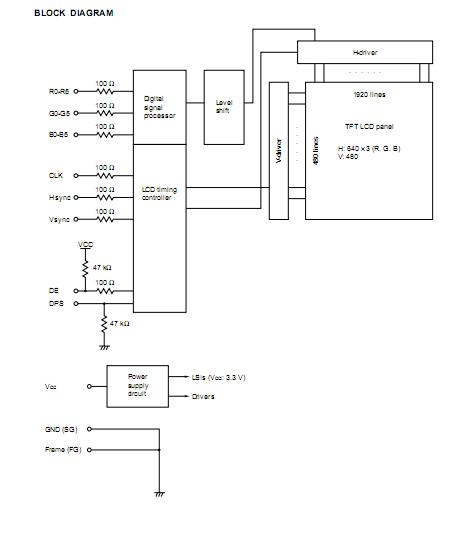

NL6448BC33-31 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NL6448BC33-31
NL6448BC33-31

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NL6448AC20-06
NL6448AC20-06

Other


Data Sheet

Negotiable
NL6448AC20-08
NL6448AC20-08

Other


Data Sheet

Negotiable
NL6448AC33-18A
NL6448AC33-18A

Other


Data Sheet

Negotiable
NL6448AC33-29
NL6448AC33-29

Other


Data Sheet

Negotiable
NL6448BC20-08
NL6448BC20-08

Other


Data Sheet

Negotiable
NL6448BC33-31
NL6448BC33-31

Other


Data Sheet

Negotiable
