Product Summary

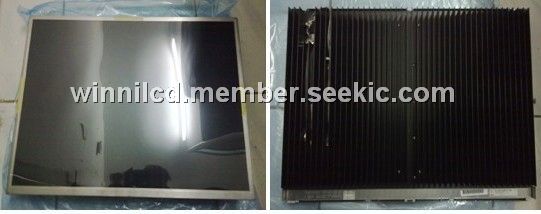

The NL160120AC27-01 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit, a CRT interface board and a backlight. The NL160120AC27-01 has a built-in backlight with an inverter. The 54 cm (21.3 inches) diagonal display area contains 1600 1200 pixels and can display full-color (more than 16 million colors simultaneously). Also, it has ultra wide viewing angle and multi-scan function. Therefore, this module calls Super Fine TFT. The applications of the NL160120AC27-01 include Engineering workstation (EWS), Desk-top type of PC, Display terminals for control system and Monitors for process controller.
Parametrics
NL160120AC27-01 absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to + 14 V; VDDB: –0.3 to + 14 V; (2)Logic input voltage, VIn1: –0.3 to + 5.5 V; (3)R,G,B input voltage, VIn2: –6.0 to + 6.0 V; (4)CLK input voltage, VIn3: –7.0 to + 7.0 V; (5)Storage temp, Tst: –20 to + 60℃; (6)Operating temp, Top: 0 to 50℃; (7)Humidity (no condensation): 95% relative humidity; 85% relative humidity; Absolute humidity shall not exceed Ta = 50℃, 85 % relative humidity) level.
Features
NL160120AC27-01 features: (1)Ultra-wide viewing angle and low reflection; (2)High luminance; (3)CRT interface board; (4)Auto recognition of input signal Analog RGB signals, Sync on Green, Synchronous signals (HS, Vsyn. Composite); (5)Digital control: e.g. Brightness, Display Position; (6)Free supply voltage sequence; (7)Corresponding to DDCI and DDC2B; (8)Corresponding to VESA DPMS; (9)Multi-scan function: e.g. UXGA,SXGA, XGA, SVGA, VGA, VGA-TEXT, PC-9801, MAC, SUN; (10)Incorporated backlight (12 lamps into a lamp unit, Inverter); (11)Lamp unit replaceable (Part No.: 213LHS01); (12)UL1950 3rd ed. UL/CSA-C22.2 No.950-95 (Pending); (13)On Screen Display Regarding the use of OSD, please note that there is possibility of conflicts with a patent in Europe and the U.S; (14)Thus, if such conflict might happen when you use OSD, we shall not be responsible for any trouble.

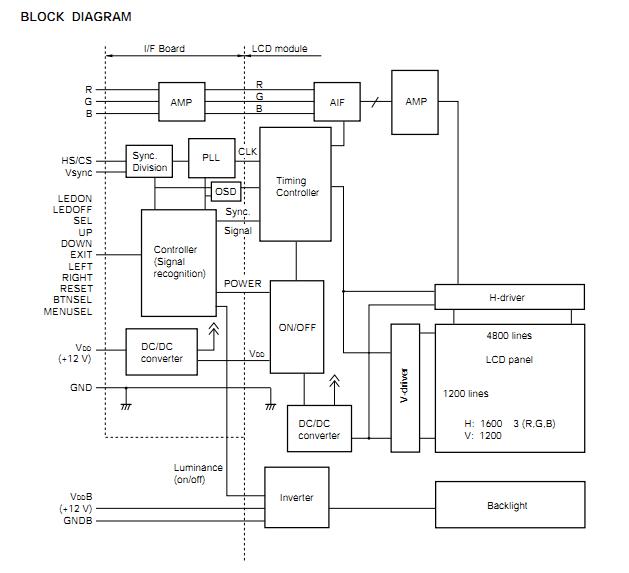

Diagrams
