Product Summary

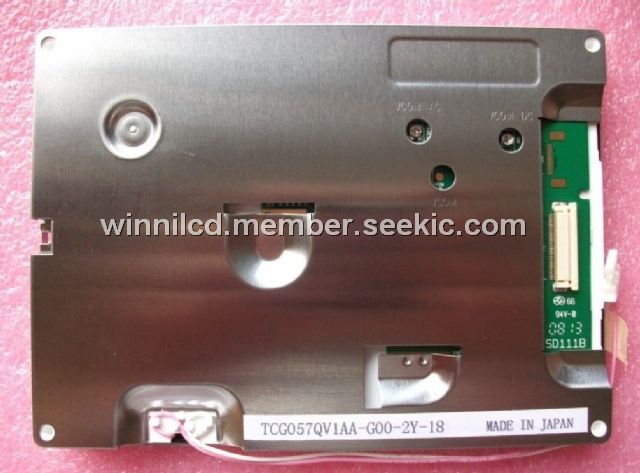

The TCG057QV1AD-G00 is a 5.7 inch QVGA Transmissive Color TFT LCD with Touch Panel and Metal Shield Back.

Parametrics

TCG057QV1AD-G00 absolute maximum ratings: (1)Dot format: 320 × (RGB) × 240 dots; (2)Dot pitch: 0.36 × 0.36 mm; (3)Effective viewing area: 117.2 × 88.4 mm; (4)Horizontal viewing angle: -70, +70; (5)Vertical viewing angle: -50, +70; (6)Response time: 35 ms; (7)Contrast ratio: 450:1; (8)Brightness: 370 nit; (9)Backlight / life hrs: 1 CFL tube / 75k; (10)Backlight power each tube: 2.74 W; (11)Logic supply voltage: 3.3 V; (12)Module power: 429 mW; (13)Operating temperature: -10 ~ +70℃; (14)Interface data: 18 bit TFT.

Diagrams

TCG057QV1AD-G00 dimenions
