Product Summary

The LMG7401PLBC is a LCD panel.

Parametrics

LMG7401PLBC absolute maximum ratings: (1)Supply Voltage (Logic), VDD - VSS: 0 to 6.5 V; (2)Supply Voltage (LC Drive), VDD - VEE: 0 to 20.5 V; (3)Input Voltage, VI: -0.3 to 0.3+VDD; (4)Operating Temperature, TOP: 0 to 50℃; (5)Storage Temperature, TST: -20 to 60℃.

Features

LMG7401PLBC features: (1)Blue on White STN Type; (2)Transmissive Mode; (3)High Brightness CFL Backlight; (4)High Contrast LC Material; (5)Built-in LCD Controller HD61830B.

Diagrams

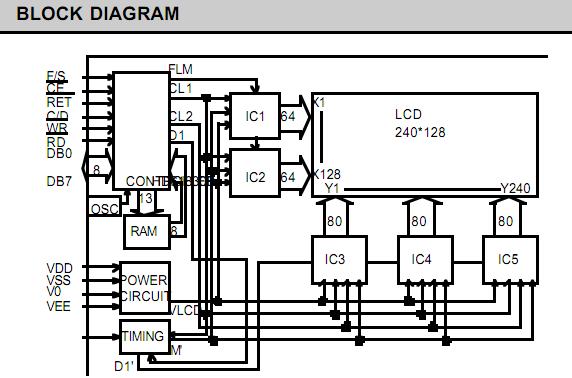

LMG7401PLBC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LMG7401PLBC
LMG7401PLBC

Other


Data Sheet

Negotiable
