Product Summary

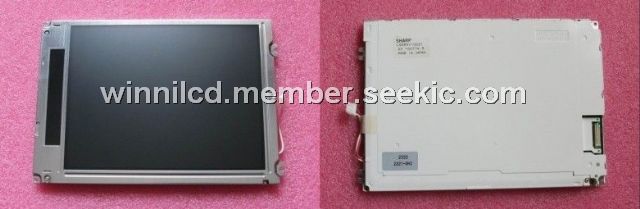

The LQ084V1DG21 is a Color TFT-LCD Module.

Parametrics

LQ084V1DG21 absolute maximum ratings: (1)Display size: 21 [8.4] cm [ "]; (2)Brightness: 300 cd/m2; (3)Dot format (H x V): 640 x RGB x 480 dot; (4)Contrast ratio: 250 : 1; (5)Dot pitch (H x V): 0.089 x 0.270 mm; (6)Power consumption: 5.42 W; (7)Active area (H x V): 170.9 x 129.6 mm; (8)Outline dimensions (W x H x D): 216.0 (221.0) x 152.4 x 12.0 mm; (9)Color: 262 144 color; (10)Weight: 410 g; (11)Input signal: 6-bit digital RGB; (12)Operating temperature: 0 to +55 ℃; (13)Viewing direction: 12:00; (14)Storage temperature: -25 to +70 ℃; (15)Backlight type: CCFT.

Features

LQ084V1DG21 features: (1)21 cm [8.4"] VGA format; (2)Low power consumption (5.42 W); (3)Built-in long life CCFT backlight (50 000 h).

Diagrams

LQ084V1DG21 outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LQ084V1DG21
LQ084V1DG21

Sharp Microelectronics

TFT Displays & Accessories 8.4" 1 x CCFT VGA

Data Sheet

Negotiable
