Product Summary

The G104SN03 is a 10.4 inch SVGA Color TFT LCD Module. This specification applies to the 10.4 inch color TFT LCD module G104SN03 V.0. This module G104SN03 is designed for General Display. The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are LVDS interface compatible. The G104SN03 does not contain an inverter card for backlight.

Parametrics

G104SN03 absolute maximum ratings: (1)Power voltage, VDD: -0.3 to 4 Volt; (2)Input signal voltage, Vin: -0.3 to VDD+0.3 Volt; (3)CCFL current, ICFL: 3.0 to 5.5 mA; (4)CCFL starting Voltage, Vs: 800 Vrms; (5)Operating temperature, Top: 0 to +50℃; (6)Operating Humidity, HOP: 8 to 90 %RH; (7)Storage temperature, TST: -20 to +60℃; (8)Storage Humidity, HST: 5 to 90 %RH; (9)Vibration: 1.5,10~200~1 G,Hz; (10)Shock: 200,2 G,ms.

Features

G104SN03 features: (1)SVGA 800(H) x600(V) resolution; (2)1 CCFL(Cold cathode Fluorescent Lamp); (3)High contrast ratio, High transmittance ratio; (4)Wide viewing angle; (5)High speed response; (6)Low power consumption; (7)LVDS interface.

Diagrams

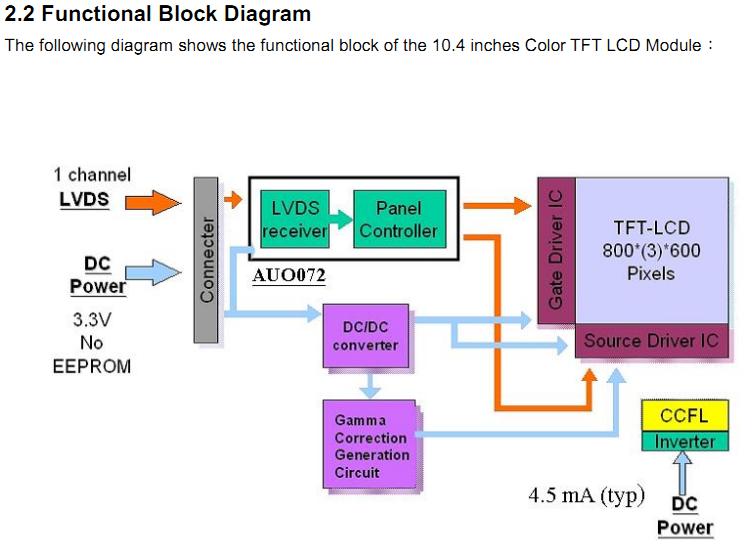

G104SN03 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

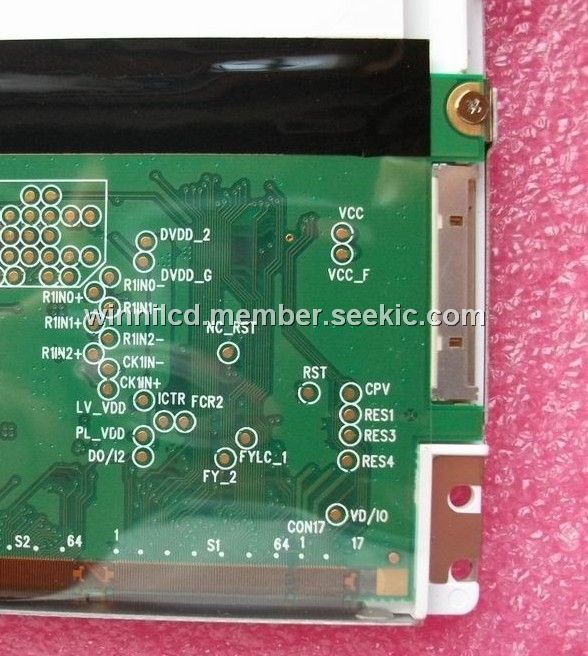

G104SN03
G104SN03

Other


Data Sheet

Negotiable
