Product Summary
The G084SN02 V.0 is an 8.4 inch SVGA Color TFT LCD Module. The G084SN02 V.0 screen format supports SVGA (800(H) x 600(V)) screen and 262k colors (RGB 6-bits data driver). All input signals are 1 channel LVDS interface compatible. The G084SN02 V.0 does not contain an inverter card for backlight. The device is an RoHs product. The G084SN02 V.0 is suitable for Internet Appliance.
Parametrics
G084SN02 V.0 absolute maximum ratings: (1)Logic/LCD Drive Voltage, VDD: 3.0 to 3.6 Volt, 3.3 Volt typ; (2)Input Voltage of Signal, Vin: 3.3 to 3.9 Volt, 3.6 Volt; (3)CCFL Current, ICFL: 3 to 6 mA; 4.6 mA typ; (4)CCFL lgnition Voltage, Vs: 820 Vrms at T=25℃; (5)Operating Temperature, TOP: 0 to +50℃; (6)Operating Humidity, HOP: 5 to 90 %RH ; (7)Storage Temperature, TST: -20 to +60℃; (8)Storage Humidity, HST: 5 to 90 %RH; (9)Vibration: 1.5, 10-500 [G, Hz]; (10)Shock: 220, 2 [G, ms].
Features
G084SN02 V.0 features: (1)This TFT LCD module complies with RoHS directive; (2)This is a 12 o’clock direction TFT LCD module.

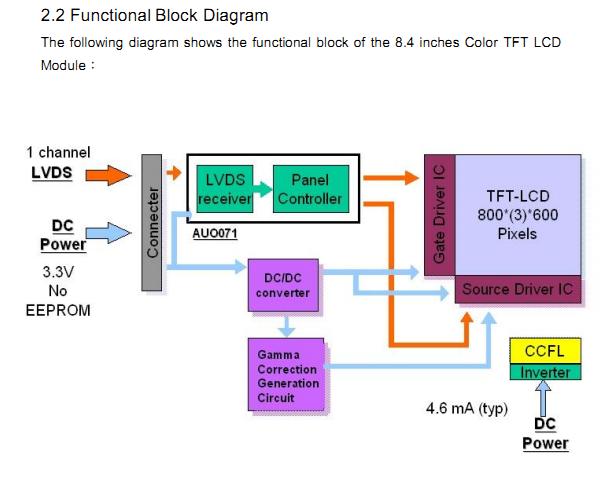

Diagrams
