Product Summary

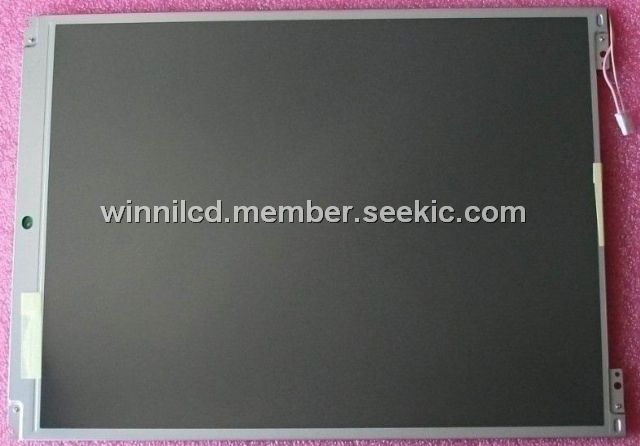

The TM121SV-02L07 is 800 x RGB x 600 dots TFT color LCD module.
Parametrics
Absolute maximum ratings: (1)Screen size diagonal: 31/12.1 (cm/inch); (2)Display format: 800 x (RGB) x 600 W x (RGB)x H [dots]; (3)Pixel pitch: 0.3075 x 0.3075 W x H [mm]; (4)Bezel Opening size: 249 x 187.5 W x H [mm]; (5)Outer dimensions: 280 x 218 x 11.5 W x H x D [mm]; (6)Weight: 690 g; (7)Panel mode: Transmissive type; (8)Backlight type: 2 CCFT; (9)Logic voltage: 3.3 V; (10)Power consumption Logic & backlight: 7.3 W; (11)Brightness: 340 (cd/m2); (12)Contrast ratio: 300 : 1; (13)Response time: 50 ms; (14)Operating temperature: -20℃ to +60℃; (15)Strage temperature: 0℃ to +50℃.
Features
Features: (1)31cm /12.1" SVGA format; (2)for POS Terminal,High Brightness; (3)6bits Digital RGB I/F.

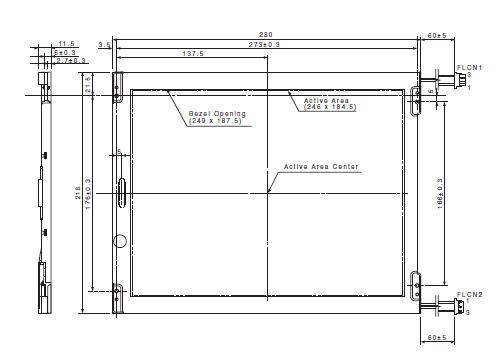

Diagrams
 |
