Product Summary

The TCG057QVLAD-G00 is an amorphous silicon TFT transmissive color dot matrix type LCD with LED backlight.

Parametrics

TCG057QVLAD-G00 absolute maximum ratings: (1)Power input voltage, VDD: 4.0V; (2)Input signal voltage, Vin: 6.0V; (3)Touch panel supply voltage, Vtp: 6.0V; (4)Touch panel input current, Itp: 0.5mA; (5)Forward current, IF: 27mA; (6)Reserved voltage, VR: 5V; (7)Operating temperature, Top: 70℃; (8)Storage temperature, Tsto: 80℃.

Features

TCG057QVLAD-G00 characteristics: (1)Power input voltage, VDD: 3.6V; (2)Current consumption, IDD: 160mA; (3)Permissive input ripple voltage(VDD=3.3V), VRP: 100mVp-p; (4)Input signal voltage(Low), VIL: 0.3VDD V; (5)Input signal voltage(High), VIH: +5.5V.

Diagrams

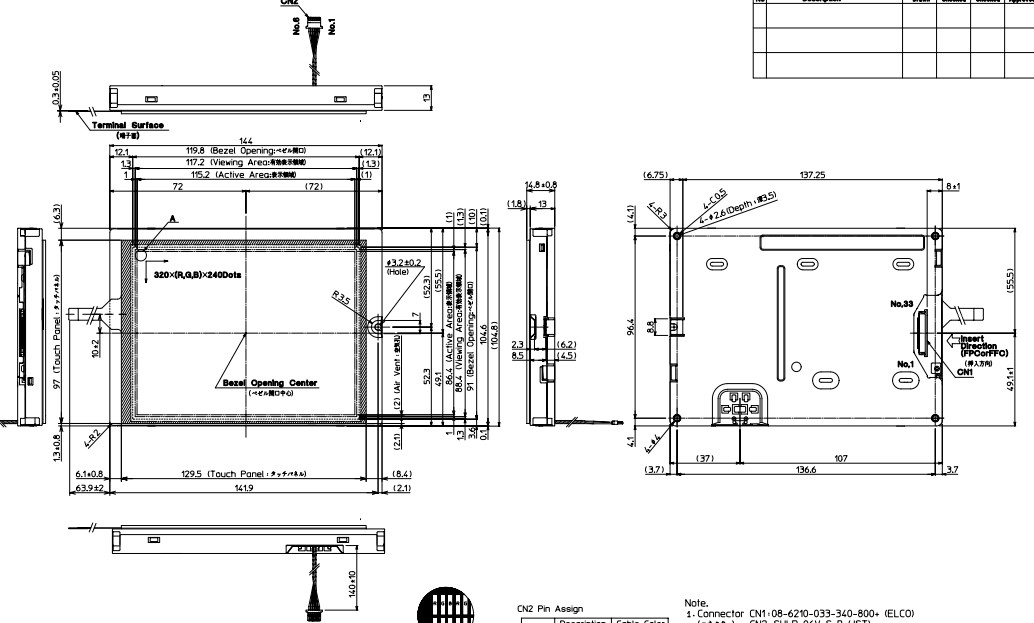

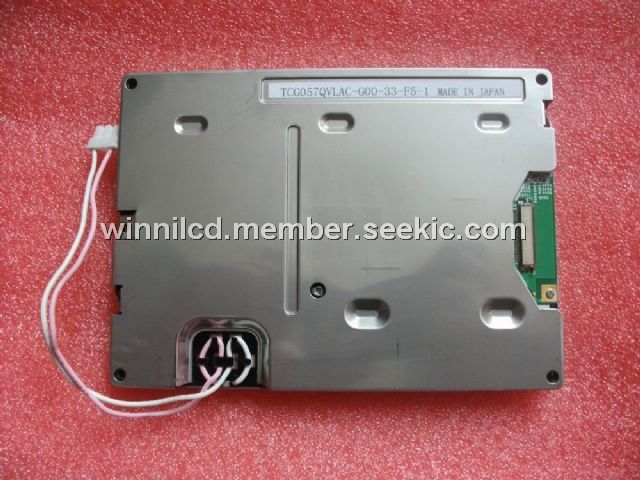

TCG057QVLAD-G00 diagram
