Product Summary

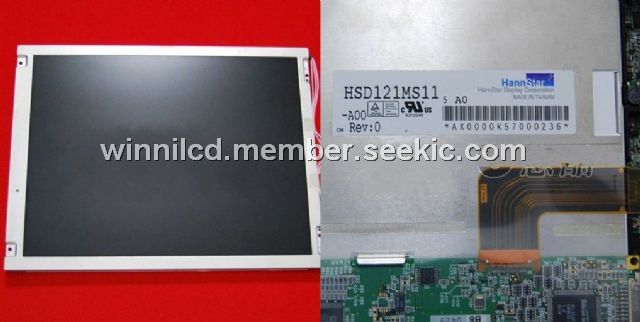

The HSD121MS11 is a color active matrix thin film transistor liquid crystal display that uses amorphous silicon TFT as a switching device. The HSD121MS11 is composed of a TFT LCD panel, a driving circuit and a back light system. It has a 12.1 inch diagonally measured active display area with SVGA resolution and can display up to 262,144 colors. The applications of the HSD121MS11 include: multimedia player, OA equipment, display terminials, measuring instrument, new media equipment.

Parametrics

HSD121MS11 absolute maximum ratings: (1)TSTG: -20 to 60℃; (2)TOPR: 0 to 50℃; (3)Vnop: 1.5G; (4)Snop: 70G; (5)HSTG: 10 to 90%RH; (6)HOP: 10 to 80%RH; (7)HLOP: 697hPa; (8)HLNOP: 116hPa.

Features

HSD121MS11 features: (1)12.1” SVGA for multimedia & industrial panel; (2)LVDS interface system; (3)Long lamp life time; (4)Replaceable lamp holder.

Diagrams

HSD121MS11 block diagram
