Product Summary

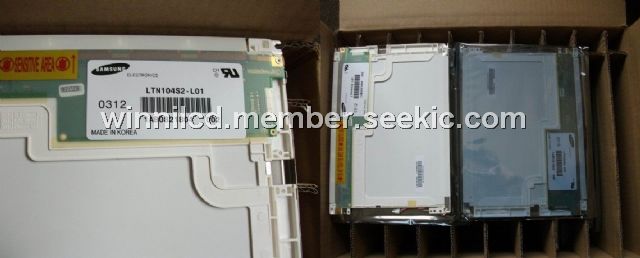

The LTN104S2-L01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of a TFT LCD panel, a driver circuit and a back-light system. The resolution of a 10.4 contains 800 x 600 pixels and can display up to 262,144colors. 6 o clock direction is the optimum viewing angle.
Parametrics
LTN104S2-L01 absolute maximum ratings: (1)Storage temperature: -20 to 60 ℃; (2)Operating temperature: 0 50℃; (3)Shock: 220 G; (4)Vibration (non-operating): 1.5g.
Features
LTN104S2-L01 features: (1)Thin and light weight; (2)High speed response time; (3)High contrast ratio, High brightness; (4)SVGA (800 x 600 pixels) resolution; (5)Low power consumption; (6)Sync mode (75Hz); (7)LVDS Interface with 1 pixel / clock (1 channel).

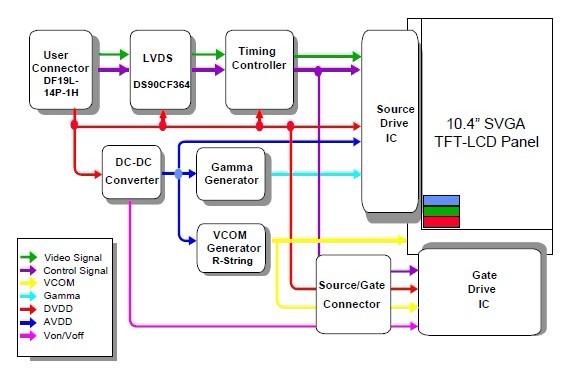

Diagrams
 |
