Product Summary

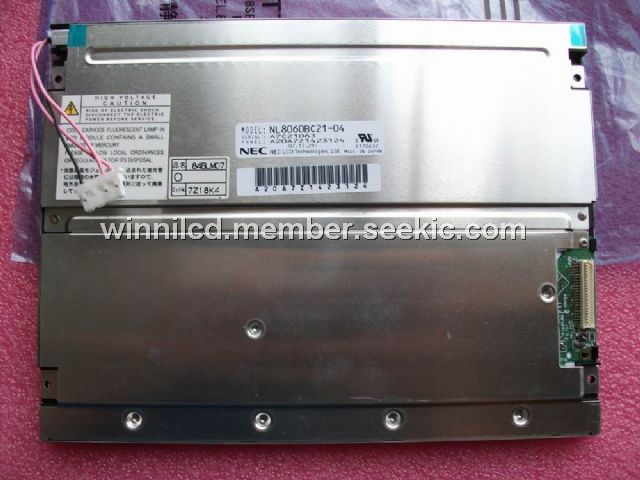

The NL8060BC21-04 is an 8.4 inches SVGA for Industrial applications. The NL8060BC21-04 structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing circuit, and sent to the driver LSIs which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when the NL8060BC21-04 is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
Parametrics
NL8060BC21-04 absolute maximum ratings: (1)Drive method: a-Si TFT active matrix; (2)Number of pixels: 800 x 600; (3)Pixel pitch: 0.213 (H) x 0.213 (V) mm; (4)Luminance: 400cd/m2; (5)Viewing angle, Up: 80°, down: 60°, right: 80°, left: 80° ; (6)Input signal: CMOS (RGB 6 bits each); (7)Power supply voltage: 3.3V / 5.0V ; (8)Operating temperature: -20 to +70℃; (9)Polarizer surface: Clear; (10)Dimensions: 200.0 (W) × 152.0 (H) × 11.0 max. (D) mm; (11)Screen size: 8.4 inches (21 cm diagonal); (12)Effective display area: 170.4 (H) x 127.8 (V) mm; (13)Pixel arrangement: RGB vertical stripe; (14)Display colors: 262K colors; (15)Contrast: 600:1; (16)Response speed: 25ms; (17)Back light: One side, 2 CCFL; (18)Power consumption: 5.5 W; (19)Storage temperature: -30 to +80℃; (20)Inverter: Sold separately; (21)Weight: 330g.
Features
NL8060BC21-04 features: (1)Wide viewing angle; (2)Adoption of ST-NLT; (3)High contrast; (4)Selectable 8-bit or 6-bit digital RGB signals; (5)Reversible-scan Direction; (6)LVDS interface; (7)Edge light type (without inverter); (8)Replaceable lamp for backlight; (9)Acquisition product for UL60950-1/CSA C22.2 No. 60950-1-03.
 |
