Product Summary
The NL6448BC33-64 is a color LCD module. It is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight. It is for industrial use.
Parametrics
NL6448BC33-64 absolute maximum ratings: (1)Power supply: voltage LCD panel signal processing board, VCC: -0.3 to +6.5V; Lamp voltage, VBLH: 2,000Vrms; (2)Input voltage for signals: Display signals, VD: -0.3 to VCC+0.3V; Function signal, VF: -0.3 to VCC+0.3V; (3)Storage temperature, Tst: -30 to +80℃ (4)Operating temperature: Front surface, TopF: -20 to +70℃ Rear surface, TopR: -20 to +70℃ (5)Relative humidity, RH: ≤95 % when Ta ≤40℃ ≤85% when 40 < Ta ≤50℃ ≤55 % when 50 < Ta ≤60℃ ≤36 % when 60 < Ta ≤70℃ (6)Absolute humidity, AH: ≤70g/m3 when Ta > 70℃.
Features
NL6448BC33-64 features: (1)High luminance; (2)Wide viewing angle; (3)High contrast; (4)6-bit digital RGB signals; (5)DE (Data enable) function; (6)Reversible-scan direction; (7)Edge light type (without inverter); (8)Replaceable lamp for backlight; (9)Acquisition product for UL60950-1/CSA C22.2 No.60950-1-03 (File number: E170632); (10)Compliance with the European RoHS directive (2002/95/EC).

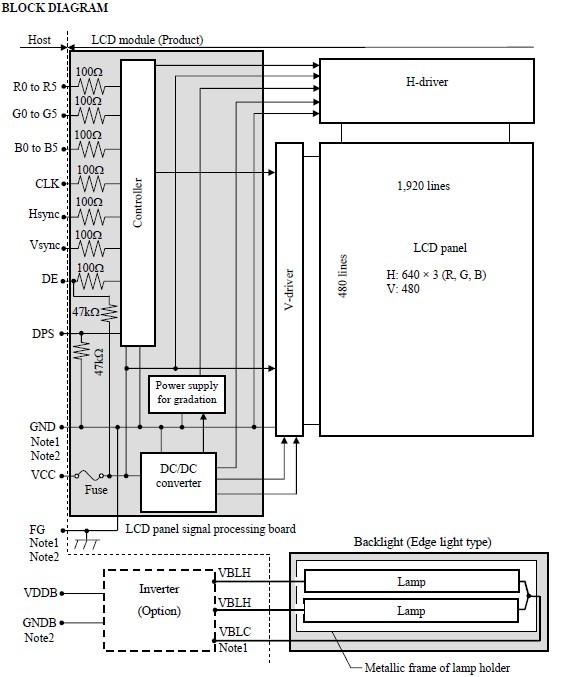

Diagrams
 |
