Product Summary
The TCG057QV1AD-G10 is a 5.7 inch active matrix color LCD module. The applications of the device include Display for Industrial Machine, Measuring Instrument, Chart Recorder, Scale, POS, ATM, Bank Terminal, Fish Finder, Musical Instrument, Sewing Machine and Copier Machine, FAX.
Parametrics
TCG057QV1AD-G10 absolute maximum ratings: (1)Dot Format: (320×RGB)×240 dot; (2)Dot Pitch: 0.12×0.36 mm; (3)Outline Dimensions: 144.0×104.8×14.8 mm; (4)Mass: 260 g; (5)Contrast Ratio: 450:1; (6)Brightness :320 (IL=4mA) cd/m2; (7)Response Time: 35 ms; (8)Viewing Angle(V/H): 120/140 (CR≧5) deg; (9)Power Consumption: 429 (LCD) mW; (10)2.74 (Backlight) W; (11)Backlight: CFL (Single Tube).
Features
TCG057QV1AD-G10 features: (1)RoHS Compliant; (2)With Touch Panel; (3)Symmetrical Design(Horizontal); (4)Single Power Supply (Built in with DC-DC Converter); (5)High Brightness 320cd/m2; (6)Long Life CFL 75,000(h); (7)V Series Compatible Design: Monochorome STN.

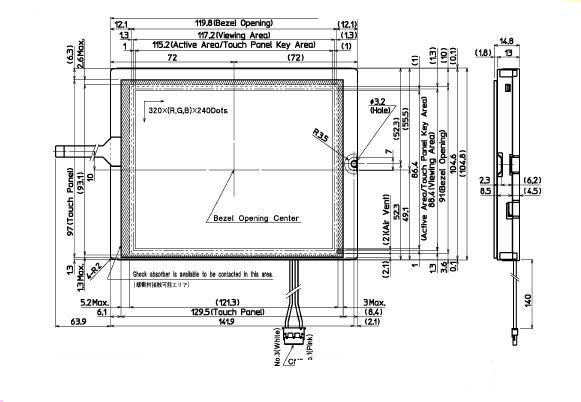

Diagrams
