Product Summary

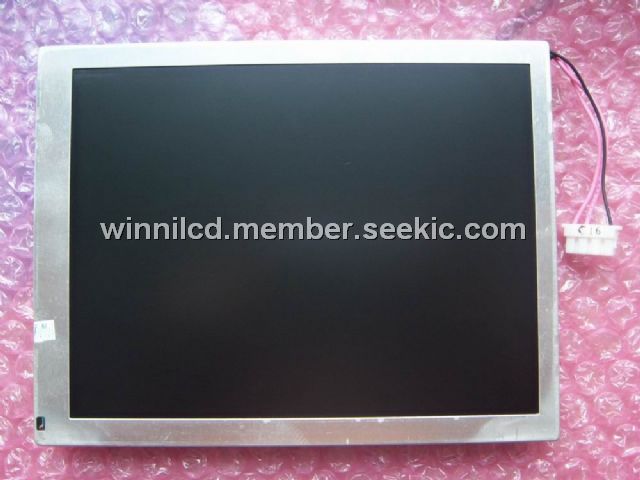

The LQ104V7DS01 is a Color Active Matrix Liquid Crystal Display module incorporating amorphous silicon TFT(thin film transistor). The LQ104V7DS01 is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 640 × 3 × 480 dots panel with 262,144 colors by supplying 18 bit data signal, four timing signals, +3.3V/+5V DC supply voltage for TFT-LCD panel driving and supply voltage for backlight.

Parametrics

LQ104V7DS01 absolute maximum ratings: (1)On the condition of Ta=25℃, Input voltage VI: -0.3~VCC+0.3V; (2)On the condition of Ta=25℃, +3.3V/+5V supply voltage VCC: 0~6V; (3)Storage temperature Tstg: -30~+70℃; (4)Operating temperature(Ambient) Topa: -10~+65℃.

Features

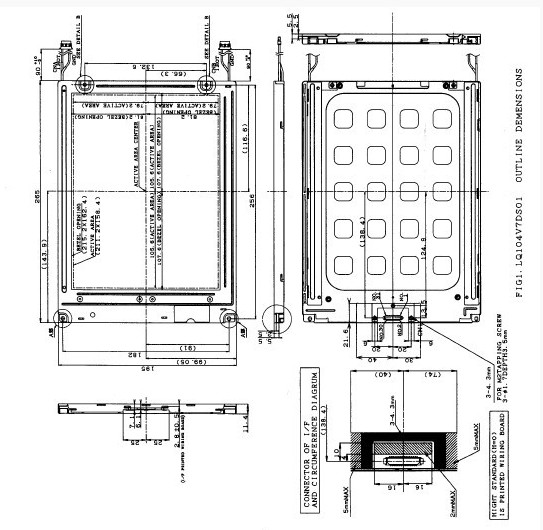

LQ104V7DS01 specifications: (1)Display size: 26(10.4)diagonal cm; (2)Active area: 211.2(H)×158.4(V) mm; (3)Pixel format: 640(H)×480(V) pixel(1 pixel=R+G+B dots); (4)Pixel pitch: 0.330(H)×0.330(V); (5)Pixel configuration: R, G, B vertical stripe; (6)Display mode: normally white; (7)Unit outline dimensions*1: 265.0(W)×195.0(H)×11.4(D); (8)Mass: 700±20g; (9)Surface treatment: anti-glare and hard-coating.

Diagrams

LQ104V7DS01 block diagram
