Product Summary

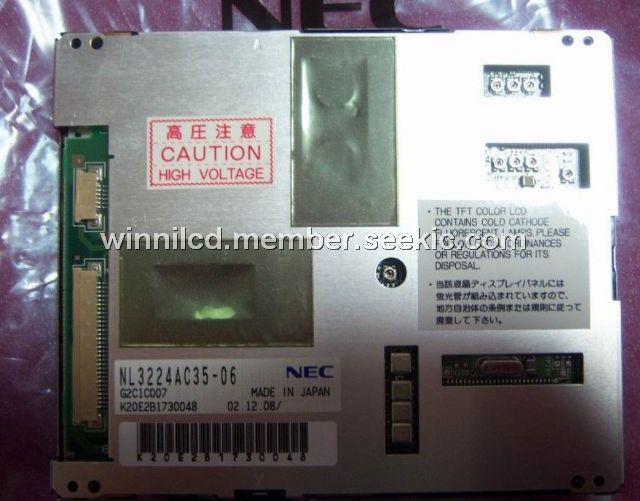

The NL3224AC35-06 is a TFT color LCD module. The NL3224AC35-06 is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight unit. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. The applications of the NL3224AC35-06 include Car navigation system and Display terminal for control system.
Parametrics
NL3224AC35-06 absolute maximum ratings: (1)power supply voltage, VCC: -0.5 to 20.0V; VDDB: -0.5 to 20V; (2)input voltage for signals, VDV: -2.5 to 2.5V; VDS: -0.5 to 5.5V; VF: -0.5 to 5.5V; VBC: -0.5 to 5.5V; (3)storage temperature, Tst: -40 to 95℃; (4)operating temperature, Top: -30 to 85℃; (5)absolute humidity: ≤44g/m3.
Features
NL3224AC35-06 features: (1)High luminance; (2)Low reflection; (3)Analog RGB signals; (4)Select function of vertical display line; (5)Reversible-scan direction; (6)Edge light type.

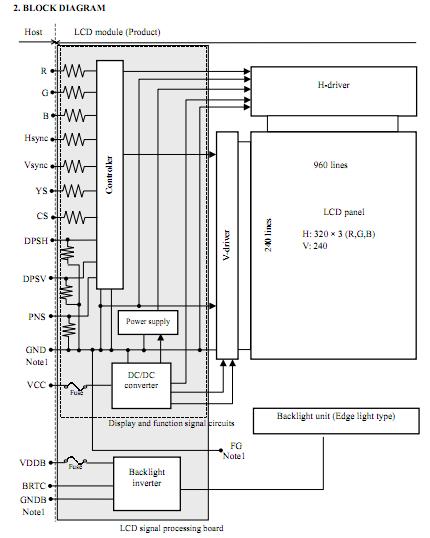

Diagrams
 |
