Product Summary
The NL128102AC31-02 is a TFT (Thin Film Transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. The NL128102AC31-02 has a built-in backlight with the inverter. The 51cm (20.1 Inches) diagonal display area contains 1280 x 1024 pixel and can display 16,777,216 colors simultaneously. The applications of the NL128102AC31-02 include Engineering work station, desk-top type of PC, Display terminals for control system and Monitors for process controller.
Parametrics
NL128102AC31-02 absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +14.0 V; VDDB: –0.3 to +14.0 V; (2)Logic input voltage (LCD), Vi: -0.3 to +3.6 V; (3)Logic input voltage (backlight-BRTC signal), ViBL1: –0.3 to +5.5 V; (4)Logic input voltage (backlight-BRTL signal), ViBL2: –0.3 to +1.5 V; (5)Storage temp. TST: –20 to +60℃; (6)Operating temp. TOP: 0 to +55℃; (7)Humidity (No condensation): 95% relative humidity; 85% relative humidity; 70% rel; Absolute humidity shall not exceed Ta = 55℃, 70% relative humidity level.
Features
NL128102AC31-02 features: (1)High luminance (200 cd/m2 typ.); (2)Low reflection and wide color gamut; (3)LVDS interface (THC63LVDF84A × 2 chips, THine Electronics, Inc.); (4)Incorporated direct type backlight (12 CCFLs with inverter).

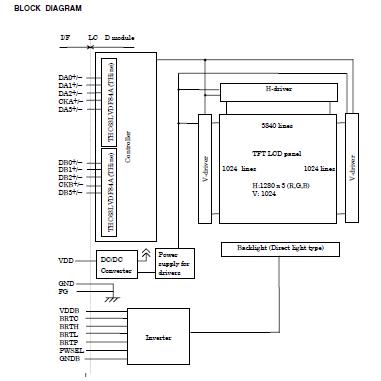

Diagrams
