Product Summary

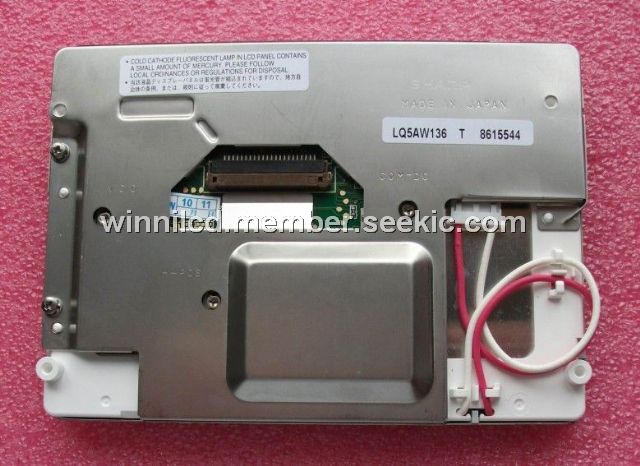

The LQ5AW136T is a Color TFT-LCD Module.
Parametrics
LQ5AW136T absolute maximum ratings: (1)Display size: 13 [5] cm [ "]; (2)No. of pixels: 74 880 pixel; (3)Dot format (H x V): 320 x RGB x 234 dot ; (4)Dot pitch (H x V): 0.1065 x 0.3195 mm; (5)Active area (H x V): 102.2 x 74.8 mm ; (6)Input signal system: NTSC/PA; (7)Input video signal: Analog RGB; (8)Viewing direction: 6:00; (9)Backlight type: 1CCFT(E); (10)Brightness: 320 cd/m2; (11)Power consumption: 5.4 W; (12)Outline dimensions (W x H x D): 126.8 x 89.6 x 16.5 mm; (13)Weight: 185 g; (14)Operating temperature: -30 to +85℃; (15)Storage temperature: -30 to +85℃.
Features
LQ5AW136T features: (1)13 cm [5"] display size; (2)Wide viewing angle (Horizontal: 130° Vertical: 105°); (3)Wide temperature range (Topr: -30 to +85℃, Tstg: -30 to +85℃); (4)Compact structure utilizing ACF-COG technology; (5)Built-in CCFT B/L.

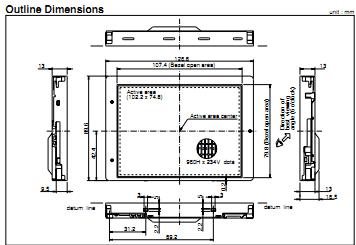

Diagrams
 |
