Product Summary

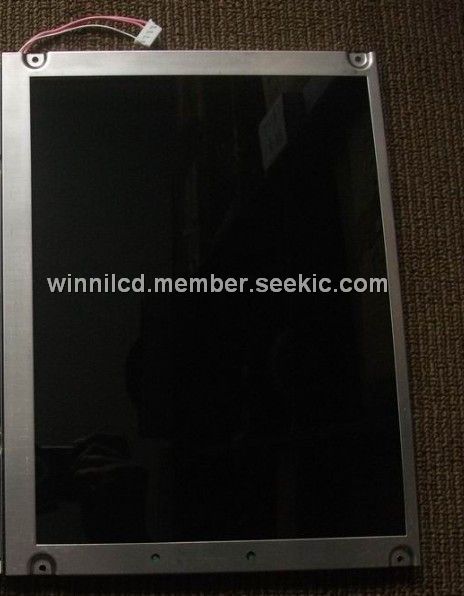

The NL10276BC24-20 is a TFT color LCD module. It is composed of the amorphous silicon thin film transistor liquid crystal display panel structure with driver LSIs for driving the TFT array and a backlight. The applications of the NL10276BC24-20 include industrial use.

Parametrics

NL10276BC24-20 absolute maximum ratings: (1)Power supply voltage, VCC: -0.3 to +4.0V; Lamp, VBLH: 1800Vrms; (2)Input voltage for signals, VD, VF1, VF2: -0.3 to VCC+0.3V; (3)Storage temperature, Tst: -20 to +80℃; (4)Operating temperature, Front surface, TopF: -10 to +70℃; Rear suface, TopR: -10 to +70℃.

Features

NL10276BC24-20 features: (1)High luminance; (2)High contrast; (3)Ultra wide viewing angle; (4)Wide temperature range; (5)LVDS interface; (6)Reversible-scan direction; (7)Edge light type; (8)Replaceable lamp for backlight; (9)Selectable 8bit for 6bit digital signals for data of RGB; (10)Compliance with the European RoHS directive; (11)High resolution.

Diagrams

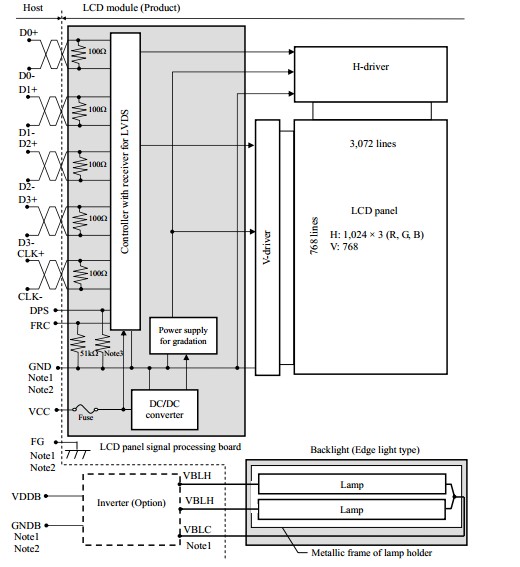

NL10276BC24-20 block diagram
