Product Summary
The LQ6BW50N is a Color TFT-LCD Module.
Parametrics
LQ6BW50N absolute maximum ratings: (1)Display size: 15 [5.8] cm [ "]; (2)No. of pixels: 93600 pixel; (3)Dot format (H x V): 400 x RGB x 234 dot; (4)Dot pitch (H x V): 0.106 x 0.307 mm; (5)Active area (H x V): 127.2 x 71.8 mm; (6)Input signal system: NTSC/PAL; (7)Input video signal: TFT Specific Analog RGB; (8)Viewing direction: 6:00.
Features
LQ6BW50N features: (1)15 cm [5.8"] display size; (2)Wide viewing angle (Horizontal: 130° Vertical: 105°); (3)Wide temperature range(Topr: -30 to +85℃, Tstg: -30 to +85℃); (4)Compact structure utilizing ACF-COG technology; (5)Wide screen (16 : 9).

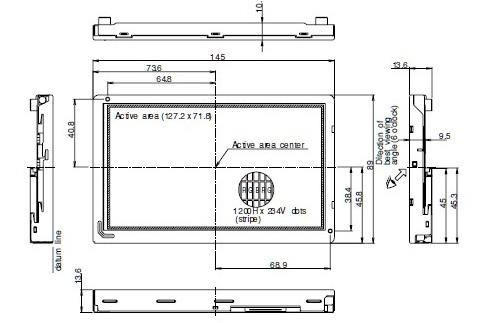

Diagrams
 |
