Product Summary

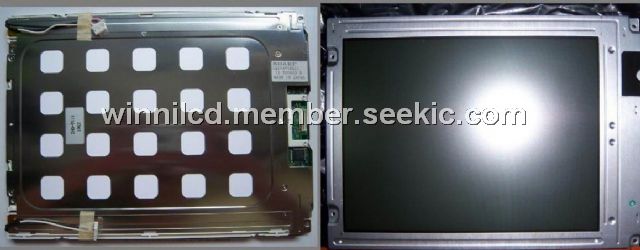

The LQ104V1DG11 is a color TFT-LCD module.
Parametrics
LQ104V1DG11 absolute maximum ratings: (1)Brightness: 350 cd/m2; (2)Contrast ratio: 300 : 1; (3)Power consumption: 7.4 W; (4)Outline dimensions (W x H x D): 265.0 x 195.0 x 11.0 mm; (5)Weight: 695 g; (6)Operating temperature: 0 to +55 ℃; (7)Storage temperature: -25 to +70 ℃; (8)Display size: 26 [10.4] cm [ "]; (9)Dot format (H x V): 640 x RGB x 480 dot; (10)Dot pitch (H x V): 0.11 x 0.33 mm; (11)Active area (H x V): 211.2 x 158.4 mm; (12)Input signal: 6-bit Digital RGB; (13)Viewing direction: 6:00; (14)Backlight type: 2CCFT (E).
Features
LQ104V1DG11 features: (1)26 cm [10.4"] VGA format; (2)Wide viewing angle(Horizontal: 140 °Vertical: 110 °); (3)High brightness (350 cd/m2); (4)Built-in long life CCFT backlight (40 000 h).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ104V1DG11 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
