Product Summary

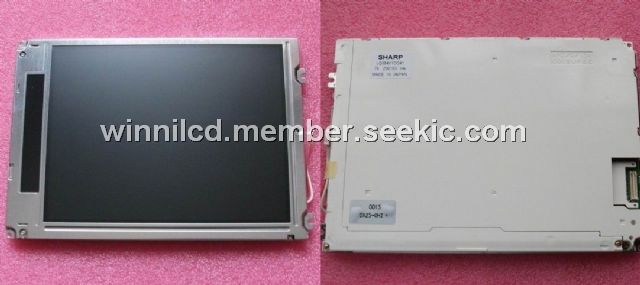

The LQ084V1DG41 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ084V1DG41 is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 640×3×480 dots panel with 262,144 colors by supplying 18 bit data signal (6bit/color), four timing signals, +3.3V/5.0V DC supply voltage for TFT-LCD panel driving and supply voltage for backlight.
Parametrics
LQ084V1DG41 absolute maximum ratings: (1)Input voltage:-0.3 to Vcc+0.3V; (2)Supply voltage:0 to +6.0V; (3)Storage temperature:-30 to 70℃; (4)Operating temperature (Ambient):-10 to 65℃.
Features
LQ084V1DG41 features: (1)Diagonal Size:8.4-inch (21 cm); (2)Display Mode:Normally White; (3)Interface:6-bit (262,144 colors); (4)Operating Temperature Range:-10℃ to 65℃; (5)Outline Dimensions:163.2 (W) × 104.0 (H) × 3.9 (D) mm; (6)Pixel Format:640 (H) × 480 (V); (7)Response Time:35 ms; (8)RoHS:Yes; (9)Storage Temperature Range:-30℃ to 70℃; (10)Type Landscape-mode:VGA; (11)Viewing Angle - 12 o clock:60 °; (12)Viewing Angle - 6 o clock:50 °; (13)Viewing Angle - side to side:140 °.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
LQ084V1DG41 |
Sharp Microelectronics |
TFT Displays & Accessories 8.4" 1 x CCFT VGA |
Data Sheet |
Negotiable |
|
|||||
