Product Summary

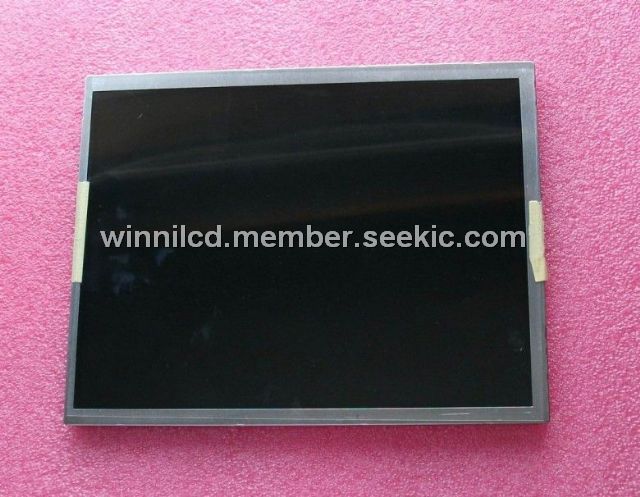

The NL10276BC20-08 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. The NL10276BC20-08 has a built-in backlight and no inverters. The 36 cm (14.1 inches) diagonal display area contains 1024 × 768 pixels and can display 262,144 colors simultaneously. It is designed for PC monitors.

Parametrics

NL10276BC20-08 absolute maximum ratings: (1)Supply voltage VCC: –0.3 to +6.0 V; (2)Logic input voltage Vi: –0.3 to VCC + 0.3 V; (3)Lamp voltage VL: 2000 Vrms; (4)Storage temp. TST: –20 to +60 ℃; (5)Operating temp. TOP: 0 to +50 ℃; (6)Relative Humidity (RH): ≤ 95%; (7)Absolute humidity: Absolute humidity shall not exceed Ta = 50℃, 85% relative humidity level.

Features

NL10276BC20-08 features: (1)High luminance; (2)Low reflection; (3)LVDS interface (Equivalent to THC63LVDF64A of Thine Electronics, Inc.); (4)6-bit digital RGB signals; (5)Incorporated edge type backlight (two lamps) and lamp holder replaceable.

Diagrams

NL10276BC20-08 block diagram
