Product Summary

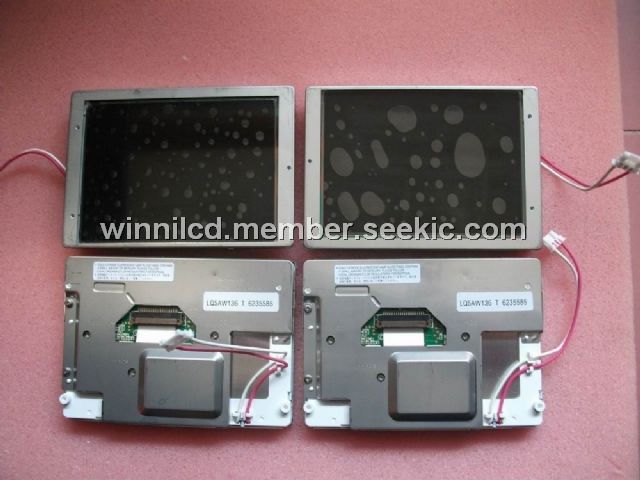

The LQ5AW136R is a LCD Display.
Features
LQ5AW136R features: (1)Active Area (W x H): 102.2 x 74.8 mm; (2)Backlight System: 1 x CCFT; (3)Brightness: 320 nits; (4)Contrast Ratio: 60:1; (5)Description: LCD Displays; (6)Diagonal Size: 5.0 inch (13.0 cm); (7)Display Mode: Normally White; (8)Family: LQ5AW136R; (9)Interface: Comp NTSC; (10)Operating Temperature Range: -30 to +85℃; (11)Outline Dimensions (W x H x D): 126.8 x 89.6 x 16.5 mm; (12)Pixel Format: 960 x 234; (13)Response Time: 80 ms; (14)RoHS: Yes; (15)Status: Discontinued; (16)Storage Temperature Range: -30 to +85℃; (17)Suggested Alternative Part Number: LQ050Q5DRxx; (18)Type: QVGA; (19)Viewing Angle - 12 o clock: 40°; (20)Viewing Angle - 6 o clock: 65°; (21)Viewing Angle - side to side: 130°.
 |
 LQ5AW136 |
|
LCD TFT 5.0" 960X234 QVGA |
Data Sheet |
Negotiable |
|
||||
|
LQ5AW116 |
Other |
|
Data Sheet |
Negotiable |
|
||||
