Product Summary

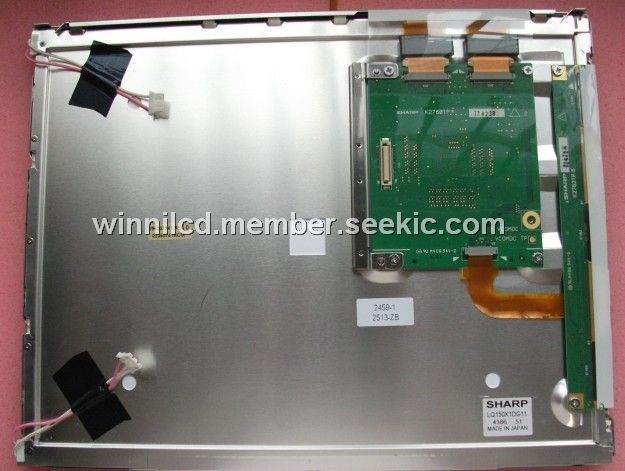

The LQ150X1DG11 is a Color TFT-LCD Module.
Parametrics

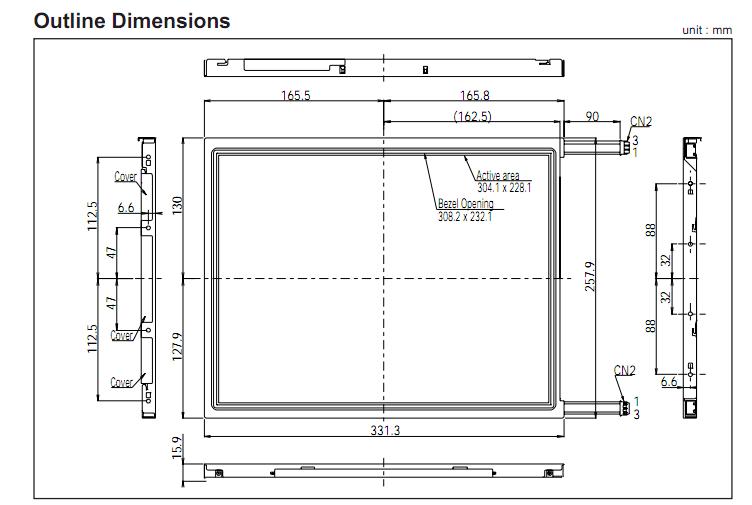

LQ150X1DG11 absolute maximum ratings: (1)Display size: 38 [15] cm [ "]; (2)Dot format (H × V): 1 024 × RGB × 768 dot; (3)Dot pitch (H × V): 0.099 × 0.297 mm; (4)Ative area (H × V): 304.1 × 228.1 mm; (5)Color: 260 000; (6)Input signal: 6-bit Digital RGB; (7)Viewing direction: 6:00; (8)Backlight type: 2CCFT(E); (9)Brightness: 200 cd/m2; (10)Power consumption: 9.5 W; (11)Outline dimensions (W × H × D): 331.3 × 257.9 × 15.9 mm; (12)Weight: 350 g; (13)Operating temperature: 0 to + 50 ℃; (14)Storage temperature: -25 to + 60℃.
Features
LQ150X1DG11 features: (1)38 cm [15"] XGA fromat; (2)Super V technology ; (3)Side mount system; (4)Wide viewing angle (Horizontal: 140° Vertical: 120°).
Diagrams
