Product Summary

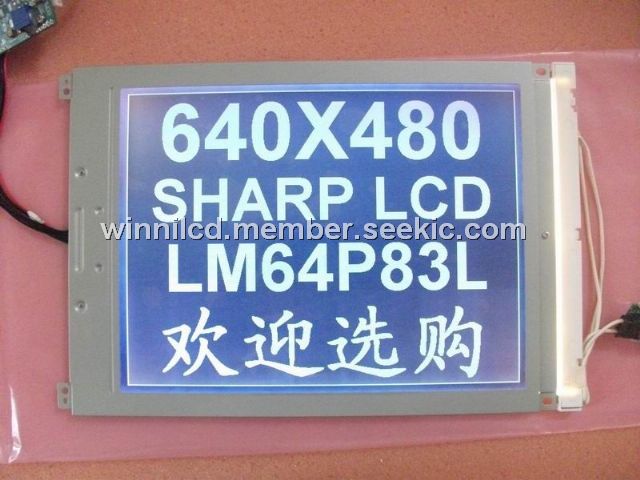

The LM64P83L is a Large Size Graphic Type LCD Module.
Parametrics
LM64P83L absolute maximum ratings: (1)Display size: 24cm; (2)Brightness: 65 cd/m2; (3)Dot format (H x V): 640 x 480 dot; (4)Duty ratio 1/240; (5)Dot pitch (H x V): 0.30 x 0.30 mm; (6)Backlight type 1CCFT(E); (7)Active area (H x V) 192.0 x 144.0 mm; (8)Power consumption: 2 380 mW; (9)Outline dimensions (W x H x D): 253.0(260.0)*2 x 174.0 x 7.0 mm; (10)Panel mode: Transmissive; (11)Weight: 340 g; (12)Color: B/W; (13)Operating temperature: 0 to +45 ℃; (14)Contrast ratio: 18 : 1; (15)Storage temperature: -25 to +60 ℃.
Features
LM64P83L features: (1)24 cm VGA format; (2)High contrast (18 : 1); (3)Built-in long life CCFT backlight; (4)Thin structure (7.0 mm) & lightweight (340 g); (5)Transmissive B/W display; (6)Mechanically compatible with LM64183P.

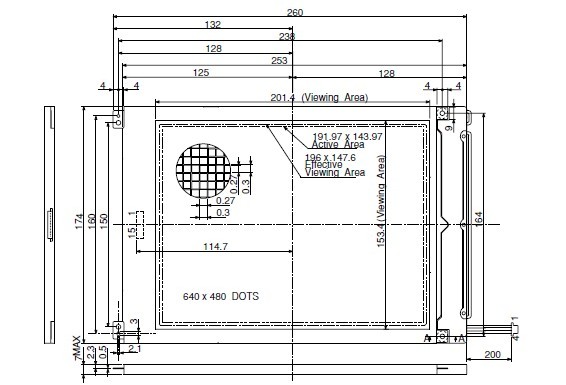

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM64P83L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
