Product Summary

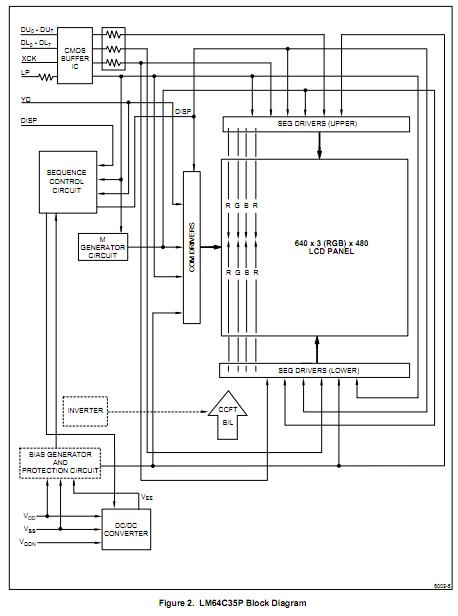

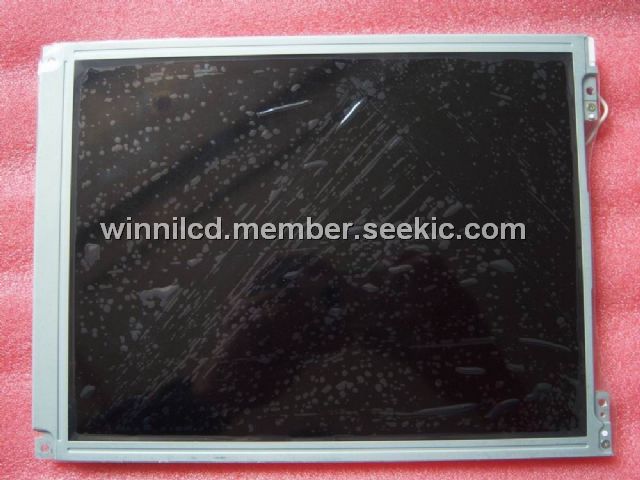

The LM64C35P is a 640 × 480 dot color display unit consisting of an LCD panel, a Printed Wiring Board (PWB) with electric components mounted onto it, Tape Automated Bonding (TAB) to connect the LCD panel and PWB electrically, and a plastic chassis with CCFT backlight and bezel to fix them mechanically. Signal ground (VSS) is connected with the metal bezel. A DC/DC converter is built in.
Parametrics
LM64C35P absolute maximum ratings: (1)VDD–VSS, Supply Voltage (Logic): 0 to 6.0V; (2)VIN, Input Voltage:–0.3 to VDD + 0.3 V.
Features
LM64C35P features: (1)Format: 640 × 480; (2)Overall Dimensions: 242.5 (W) × 179.4 (H) × 11.5 (D) mm; (3)Active Area: 211.2 (W) × 158.4 (H) mm; (4)Dot Pitch: 0.085 × RGB (W) × 0.305 (H) mm; (5)Response/Contrast Ratio: 300 ms/30:1.
