Product Summary
The LM5Q32 is a Color STN LCD Module.
Parametrics
LM5Q32 absolute maximum ratings: (1)Display size: 12.6 [5] cm [ "]; (2)Dot format (H × V): 320 × RGB × 240 dot; (3)Dot pitch (H × V): 0.105 × 0.315 mm; (4)Active area (H × V): 100.8 × 75.6 mm; (5)Panel type: 1; (6)Panel mode: Transmissive; (7)Contrast ratio: 30 : 1; (8)Response time: 200 ms; (9)Brightness: 120 cd/m2; (10)Backlight type: 1CCFT(D); (11)Duty ratio: 1/240; (12)Logic voltage: 5.0 V; (13)Power consumption panel: 310; (14)mW Backlight: 2 900; (15)Outline dimensions (W × H × D): 134.0 × 100.0(113.0) × 10.5 mm; (16)Weight: 150 g; (17)Operating temperature: 0 to +60℃; (18)Storage temperature: -25 to +65℃.
Features
LM5Q32 features: (1)12.6 cm [5"] QVGA format; (2)Single scan (1/240 Duty); (3)Normal STN interface (8-bit parallel); (4)Motion picture compatible: Fast response time (200 ms)/High contrast (30:1).

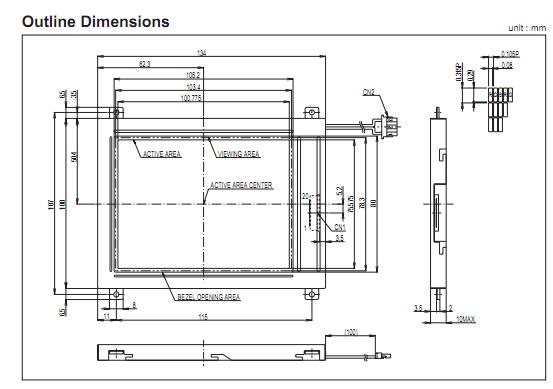

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM5Q32 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LM5Q31 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM5Q32 |
Other |
|
Data Sheet |
Negotiable |
|
||||
