Product Summary

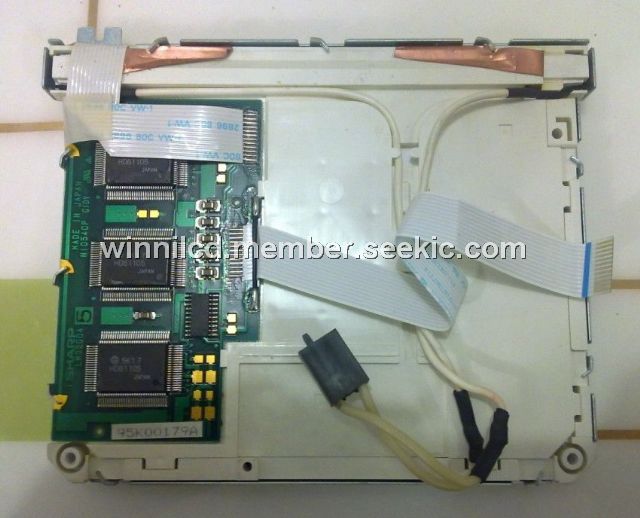

The LM32019T is a medium size graphic type lcd module.

Parametrics

LM32019T Specifications: (1)Display size: 14 [5.7] cm; (2)Brightness: 100 cd/m2; (3)Dot format (H x V) 320 x 240 dot; (4)Duty ratio 1/240; (5)Dot pitch (H x V) 0.36 x 0.36 mm; (6)Backlight type: 1CCFT(E); (7)Active area (H x V): 115.2 x 86.4 mm; (8)Power consumption panel: 82 mW; Backlight: 1400 mW; (9)Panel mode: Transmissive; (10)Outline dimensions (W x H x D): 160.0(166.0) x 109.0 x 7.5mm; (11)Operating temperature: 0 to +45 ℃; (12)Response time: - [400] ms; (13)Storage temperature: -25 to +60 ℃.

Features

LM32019T features: (1)14 cm [5.7"] QVGA format; (2)High brightness (100 cd/m2); (3)Blue mode display; (4)Mechanically compatible with LM32019P.

Diagrams

LM32019T Outline Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM32019T
LM32019T
Other

Data Sheet
Negotiable
