Product Summary
The LM150X06 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. The LM150X06 is a transmissive type display operating in the normally white mode. This TFT-LCD LM150X06 has a 15.0 inches diagonally measured active display area with XGA resolution(768 vertical by 1024 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16M colors.
Parametrics
LM150X06 absolute maximum ratings: (1)Power Input Voltage, VCC: -0.3 to 3.6Vdc; (2)Operating Temperature, Top: 0 to 50℃; (3)Storage Temperature, Tst: -20 to 60℃; (4)Operating Ambient Humidity, Hop: 10 to 90%RH; (5)Storage Humidity, HST: 10 to 90%RH.
Features
LM150X06 features: (1)Display operating mode Transmissive mode, normally white; (2)Active screen size 15.0 inches(304.128 × 228.096) diagonal; (3)Outline Dimension 331.3(H) × 257.9(V) × 11.0(D) mm (Typ.) ; (4)Pixel Pitch 0.297 mm × 0.297mm; (5)Pixel format 1024 Horiz. by 768 Vert. Pixels RGB stripes arrangement; (6)Color depth 16M colors ( 6-bit with FRC ); (7)Luminance, white 250 cd/m2(Typ.); (8)Power Consumption 9.1254 Watt(Typ.); (9)Weight 930 g (Typ.); (10)Surface treatments Hard coating(3H) Anti-glare treatment of the front polarizer; (11); (12); (13); (14); (15).

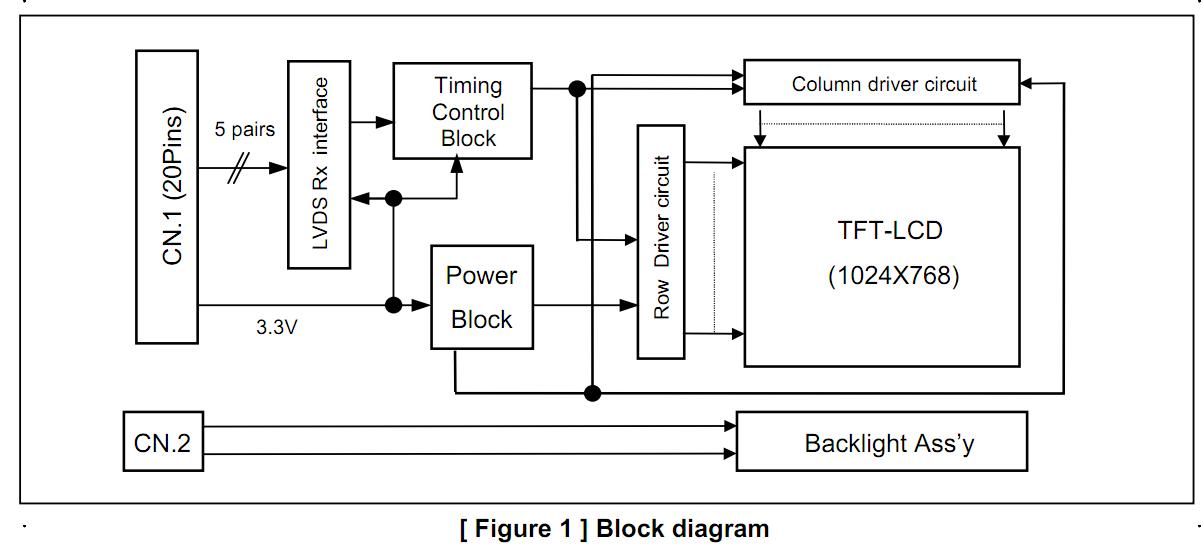

Diagrams
 |
