Product Summary
The KCG057QV1DC-G770 is a LCD module.
Parametrics
KCG057QV1DC-G770 absolute maximum ratings: (1)Supply voltage for logic, VDD: 0 to 6.0 V; (2)Supply voltage for LCD driving, VCONT: 0 to VDD; (3)Input signal voltage, VIN: 0 to VDD; (4)FRM frequency, fFRM: 150 Hz; (5)Supply voltage for touch panel, VTP: 0 to 6.0 V; (6)Input current of touch panel, ITP: 0 to 0.5 mA.
Features
KCG057QV1DC-G770 features: (1)Outline dimensions: 144 (W)× (104.8) (H) × 14.5 (D) mm; (2)Active area: 115.18 (W) × 86.38 (H) (14.4cm / 5.7 inch (Diagonal)) mm; (3)Effective viewing area: 117.2 (W) × 88.4 (H) mm; (4)Dot format: 320×(R,G,B) (W) × 240 (H) dot; (5)Dot size: 0.10 (W) × 0.34 (H) mm; (6)Dot pitch: 0.12 (W) × 0.36 (H) mm; (7)Base color: Normally Black; (8)Mass: 220 g.

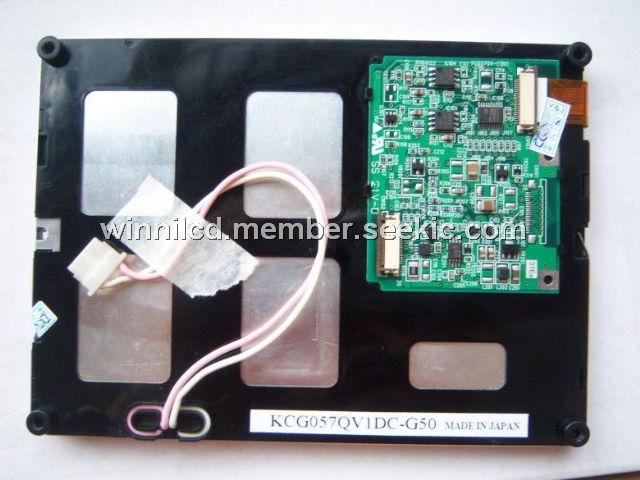

Diagrams
