Product Summary

The G057QN01 V.1 is a 5.7 inch color TFT-LCD. The device is designed for industrial display applications with VGA resolution and 262k colors. It is composed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit. The G057QN01 V.1 offers CMOS interface for display signal input.

Parametrics

G057QN01 V.1 absolute maximum ratings: (1)logic/LCD drive voltage,Vin: -0.3 to 3.6V; (2)LED backlight, ILED: 0 to 30mA; (3)operating temperature, TOP: -30 to 85℃; (4)operation humidity, HOP: 5 to 95%RH; (5)storage temperature, TST: -30 to 85℃; (6)storage humidity, HST: 5 to 95%RH.

Features

G057QN01 V.1 features: (1)Panel Size: 5.7inch ; (2)Dot Resolution: 320(RGB)×240, QVGA; (3)Aspect Ratio: 4:3(W:H); (4)Pixel Pitch: 0.360×0.360 mm (W×H); (5)Weight: 160/175g (Typ./Max.); (6)Surface: antiglare, hard coating; (7)Active Area: 115.2×86.4 mm (W×H); (8)Bezel Area: 118.2×89.4 mm (W×H); (9)Outline Dimension: 144.0×104.6 mm (W×H); (10)Outline Depth: 12.3 (Typ.) mm; (11)Holes & Brackets: Rear mounting holes (4-Φ2.6); (12)Touch Panel: without.

Diagrams

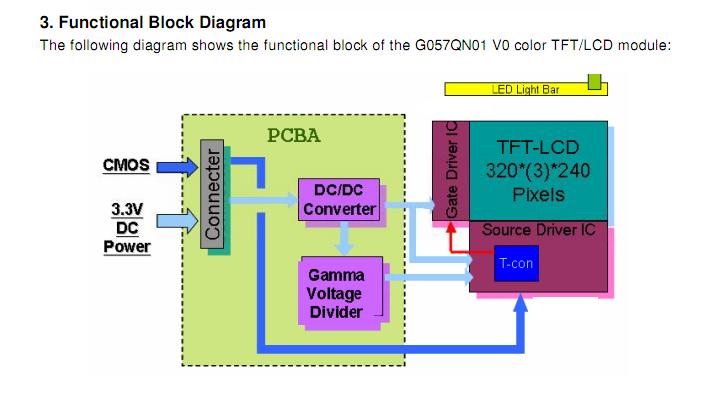

G057QN01 V.1 block diagram
