Product Summary

The TX26D01VM1CAA is a 10.4-inch Game TFT LCD panel. It is suitable for Industrial control, Game, Textile, Portable DVD, LCD TV, DPF, LCD Media player, Car Mobile Media etc.

Parametrics

TX26D01VM1CAA absolute maximum ratings: (1)Brightness(cd/m2): 380; (2)Active area: 211.2×158.4; (3)Pixel Format: 640×480 VGA; (4)Contrast ratio: 350:1; (5)Visual angle(R/L/U/D): 65/65/45/60; (6)Video input format: TTL; (7)Backlight: 2CCFL Lamp; (8)Input voltage: 3.3V; (9)Weight: 530 g; (10)Outline dimensions(W/H/D)mm: 243.0×181.6×12.5; (11)Operating temperature: -10 - 70℃; (12)Storage temperature: -20 - 70℃.

Features

TX26D01VM1CAA features: (1)TFT; (2)TTL-31Pin; (3)2CCFL Lamp; (4)640×480; (5)4:3; (6)Luminance:380 cd/m2; (7)Contrast ratio:300:1; (8)Operating temperature:-10 - 70℃; (9)Applications: Industrial control, Game, Textile, Portable DVD, LCD TV, DPF, LCD Media player, Car Mobile Media etc.

Diagrams

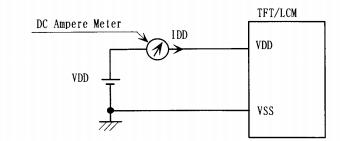

TX26D01VM1CAA block diagram

TX26/15/10-3E5
TX26/15/10-3E5

Other


Data Sheet

Negotiable
