Product Summary

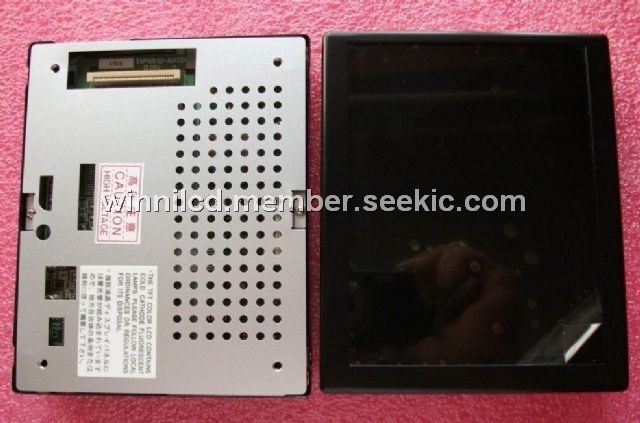

The NL3224AC35-13 is a TFT (thin film transistor) active matrix color liquid crystal display(LCD)comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. It has a built-in backlight. Its 14 cm diagonal display area contains 320 × 240 pixels and can display full-color simultaneously. The applications of the NL3224AC35-13 include: Car navigations, TV monitors, Video games, Monitors for process controller.
Parametrics
NL3224AC35-13 absolute maximum ratings: (1)Supply voltage VDC: –0.5 to 20.0 V; VDCB: –0.5 to 20.0 V; (2)Analog RGB input signal VIN1: –2.5 to 2.5 V ; (3)Logic input voltage VIN2: –0.5 to 5.5 V; (4)Storage temp. TST: –40 to 95 ℃; (5)Operating temp. TOP: –30 to 85 ℃; (6)Relative humidity (RH): ≤ 95 % (Ta ≤ 40℃); ≤ 85 % (40 < Ta ≤ 50℃; (7)Absolute humidity: Absolute humidity shall not exceed Ta = 50℃, RH = 85% g/m3 (Ta > 50℃).
Features
NL3224AC35-13 features: (1)High luminance; (2)NTSC/PAL mode; (3)Reversible horizontal and vertical scanning; (4)234/240 line display; (5)Wide temparature range; (6)Analog RGB interface; (7)Incorporated edge type backlight.

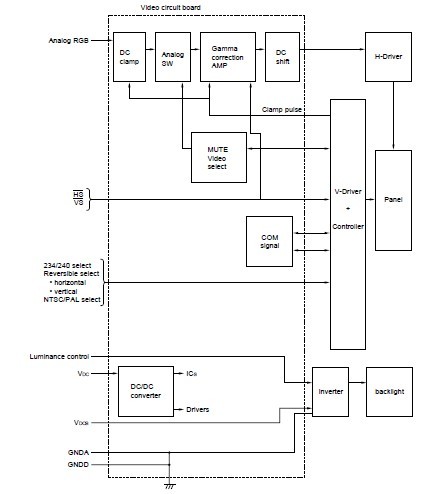

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NL3224AC35-13 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
NL3224AC06 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL3224AC10 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL3224AC35 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL3224AC35-01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NL3224AC35-13 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
NL322522T-047J |
|
INDUCTOR SHLD 0.047UH 5% 1210 |
Data Sheet |
Negotiable |
|
||||
