Product Summary

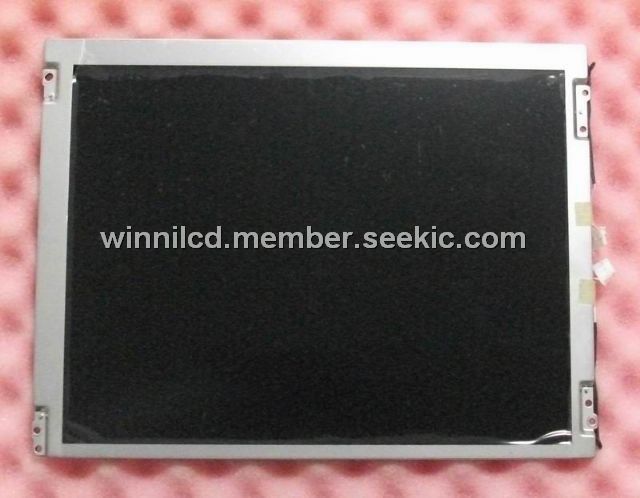

The G121SN01 is a 12.1 Inch Color TFT-LCD. This specification applies to the Color Active Matrix Liquid Crystal Display G121SN01 V4 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). LED driving board for backlight unit is included in G121SN01 V4 and the LED unit is replaceable. All input signals are LVDS interface and compatible with G121SN01 V3. G121SN01 V4 designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industial applications. G121SN01 V4 is a RoHS product.

Parametrics

G121SN01 absolute maximum ratings: (1)Operating Temperature TOP: -30 to +85 [℃]; (2)Operation Humidity HOP: 5 to 95 [%RH]; (3)Storage Temperature TST -30 to +85 [℃]; (4)Storage Humidity HST: 5 to 95 [%RH].

Features

G121SN01 features: (1)Screen Diagonal [inch]: 12.1; (2)Active Area [mm]: 246 (H) x 184.5 (V); (3)Pixels H x V: 800 x 3(RGB) x 600; (4)Pixel Pitch [mm]: 0.3075 x 0.3075; (5)Pixel Arrangement: R.G.B. Vertical Stripe; (6)Display Mode: TN, Normally White; (7)Nominal Input Voltage VDD [Volt]: 3.3 (typ.); (8)Typical Power Consumption [Watt]: 6.7 W All black pattern; (9)Weight [Grams]: 580 (Max.); (10)Physical Size [mm]: 279.0(H) x 209.0(V) x 9.0(D) (Typ.); (11)Electrical Interface: 1 channel LVDS; (12)Surface Treatment: Anti-glare, Hardness 3H; (13)Support Color: 16.2M / 262K colors; (14)RoHS Compliance: RoHS Compliance.

Diagrams

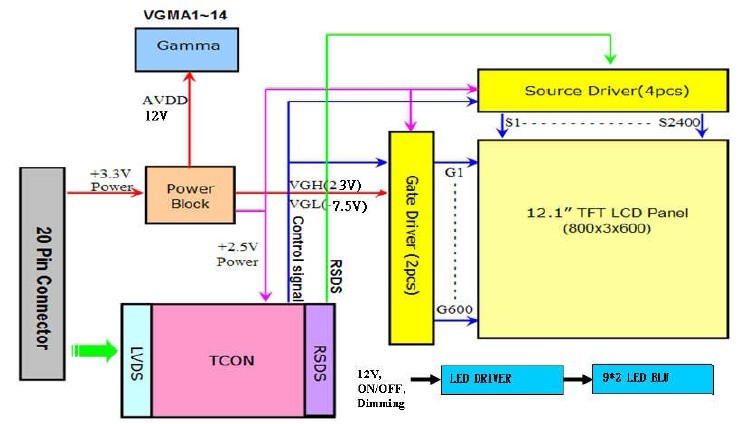

G121SN01 block diagram
