Product Summary

The LTM121SI-T01 is a color active matrix TFT liquid crystal display that uses amorphous silicon TFTs as switching devices. The LTM121SI-T01 is composed of a TFT LCD panel, a driving circuit and a backlight system. The resolution of a 12.1" contains 800×600 pixels and can display up to 262144 colors. The applications of the LTM121SI-T01 include notebook PC and desktop monitors, display terminals for AV application products and monitors for industrial machine and POS.

Parametrics

LTM121SI-T01 absolute maximum ratings: (1)storage temperature, Tstg: -25 to 60℃; (2)operating temperature, Topr: 0 to 50℃; (3)shock (nonoperating), Snop: 50G; (4)vibration (nonoperating), Vnop: 1.5G.

Features

LTM121SI-T01 features: (1)thin and light weight; (2)high contrast ratio, high aperture structure; (3)high-speed response; (4)SVGA (800×600 pixels) resolution; (5)low poer consumption; (6)dual CCFLs (cold cathode fluorescent lamp); (7)DE (data enable) mode; (8)3.3V power supply.

Diagrams

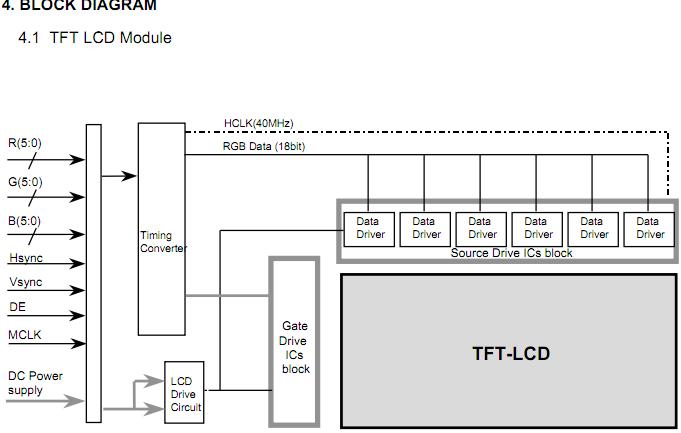

LTM121SI-T01 block diagram
